2017-2023 Chevrolet Bolt EV All Class 1 Trailer Hitch, 1-1/4" Ball Mount

Product Description

This fits: 2017-2023 Chevrolet Bolt EV All

Specs:

• Main Body Shape: Square
• Receiver Tube Size: 1-1/4 IN
• Weight Carrying Capacity: 1,000 LB
• Tongue Weight: 100 LB
• Drilling Required: No
• Installation Difficulty: Novice
• Installation Time: 30
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Features:

• Rated to 1,000 lbs. gross trailer weight and 100 lbs. tongue weight

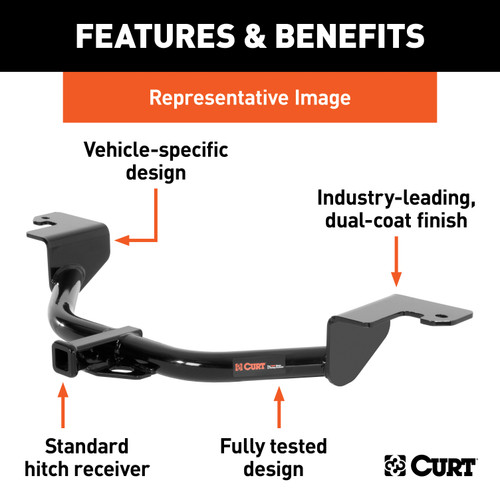

• Engineered with a vehicle-specific design for a custom fit
• Concealed main body for OE look and seamless integration with the vehicle
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish

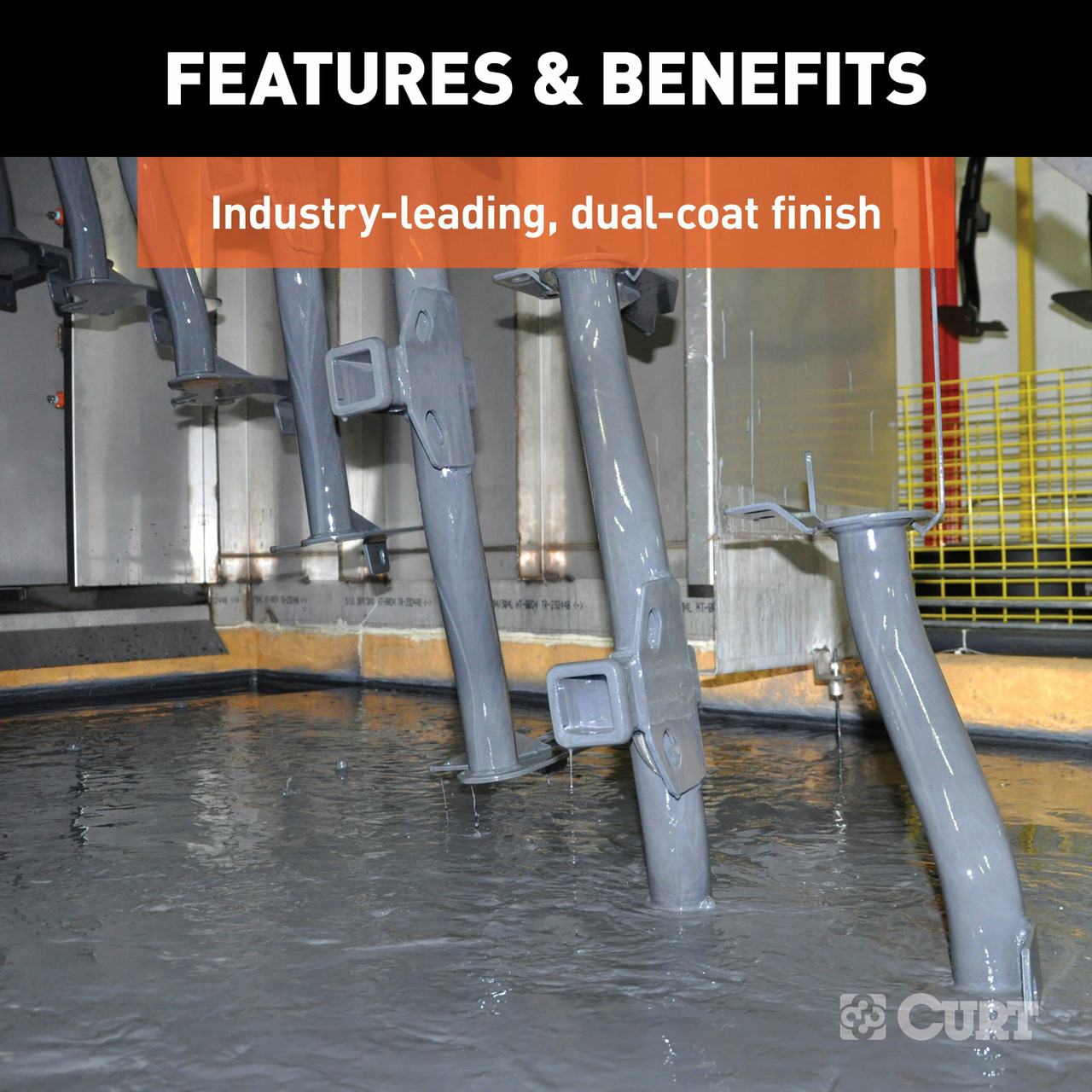

• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning

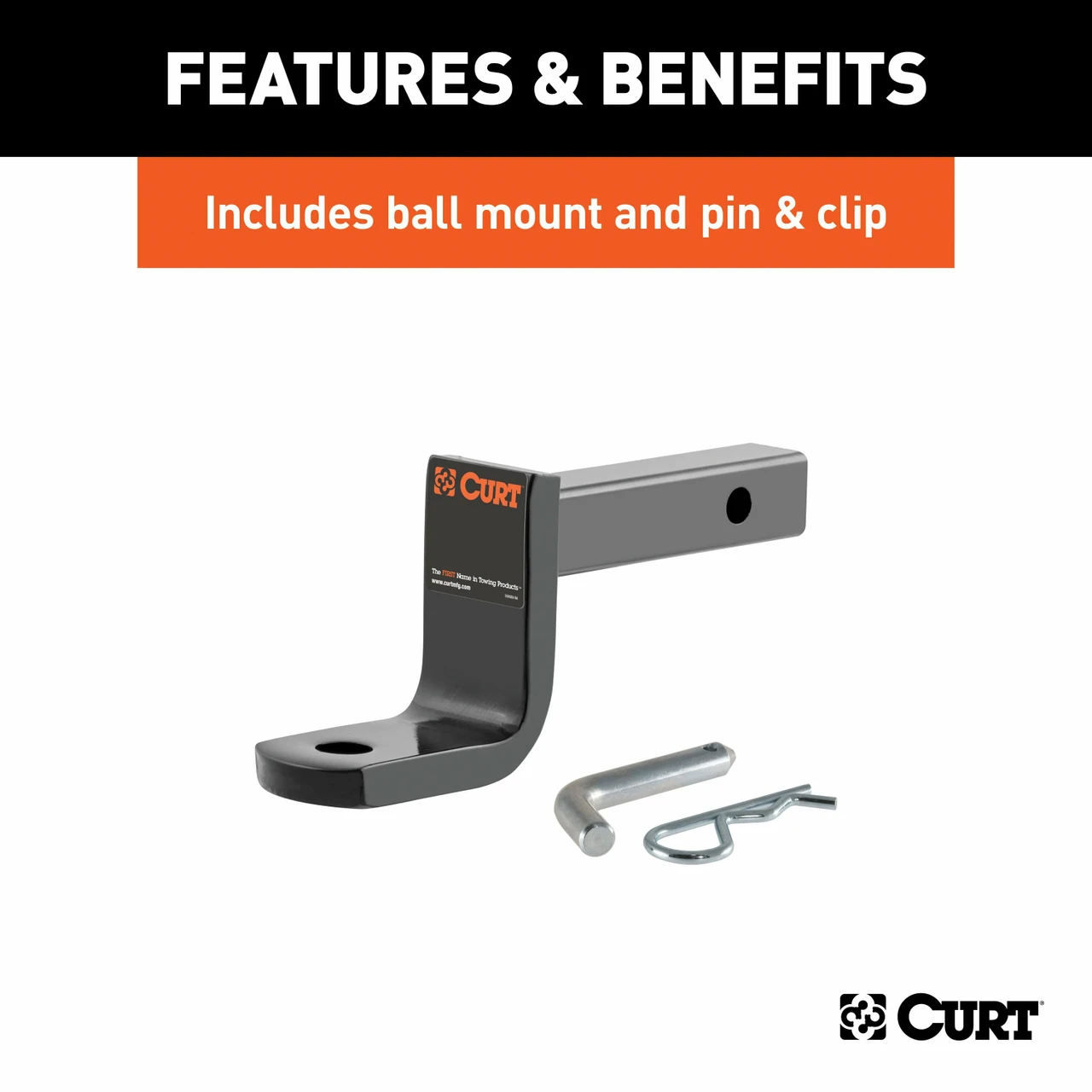

• 1-1/4" x 1-1/4" ball mount features a 3/4" hole to accept a trailer ball shank
• Ball mount can be flipped to provide drop or rise for level towing
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

Description:

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Chevrolet Bolt EV (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 1,000 pounds gross trailer weight and 100 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.

Notes:

Installation requires some minor fascia trimming

Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities

Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)

Partial List of Years:

2017, 2018, 2019, 2020, 2021, 2022, 2023 Chevrolet Bolt EV All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Chevrolet Bolt EV
