  • Reese Fifth Wheel Hitch 20,000 lbs. Capacity, Dual Jaw, Complete System, Industry Standard Mount

    • Reese Fifth Wheel Hitch 20,000 lbs. Capacity, Dual Jaw, Complete System, Industry Standard Mount

    1,269 Write a Review

    MSRP: $987.50
    $728.54
    (You save $258.96 )
    SKU:
    RE30119
    UPC:
    016118037043
    Condition:
    New
    Ships via Freight:
    False
    Includes:
    5th Wheel Hitch
    Mount Type:
    Mounts to Existing Rails
    Weight Capacity:
    20,000 lbs.
    Style:
    Fixed
    color:
    Black
    warranty:
    10 Year
    instruction:
    https://www.towingproducts.net/public/support/instructions/N30119.pdf
    Adding to cart… category.add_cart_announcement
    Installation Instructions

    Product Description

    Reese Logo

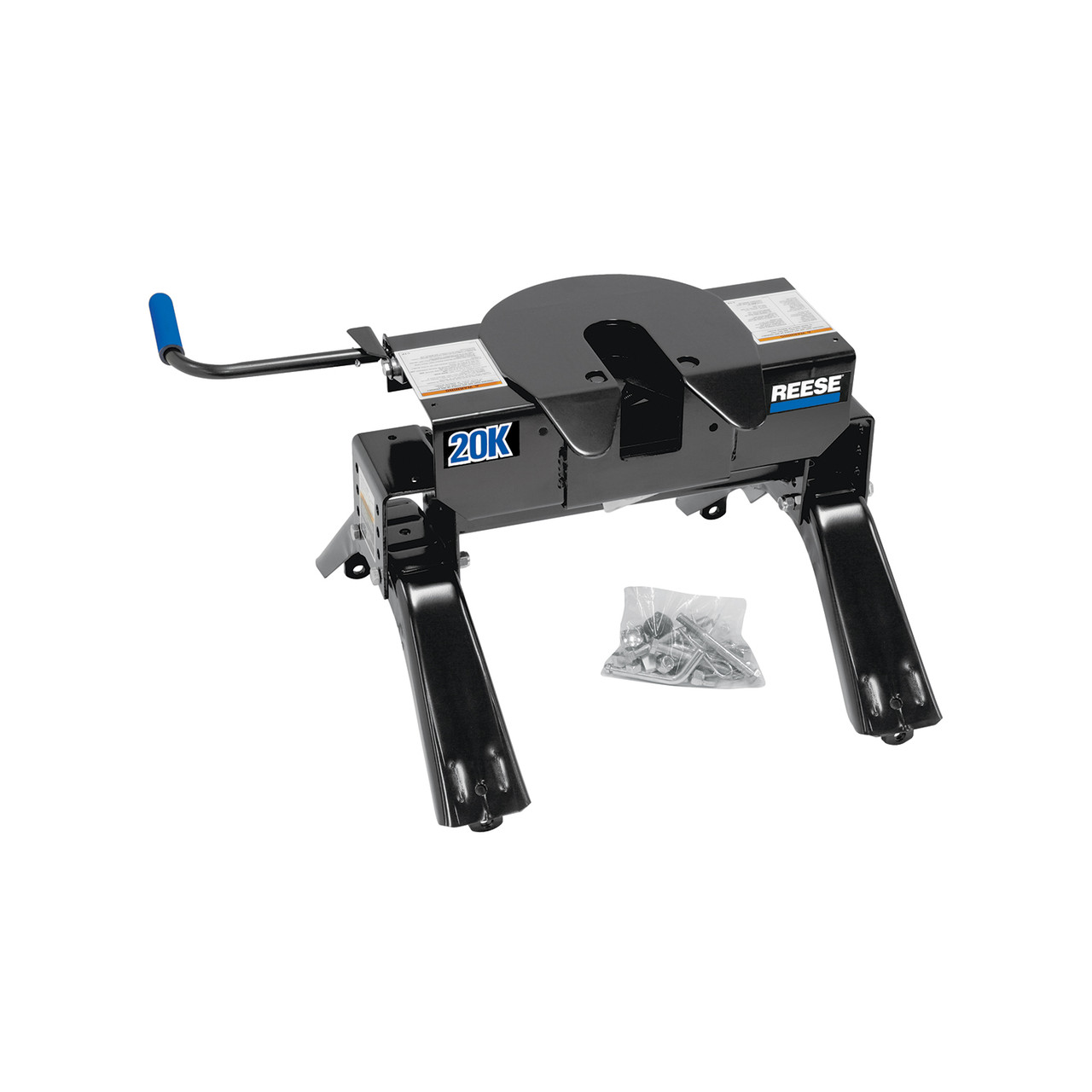

    Fifth Wheel Hitch 20,000 lbs. Capacity, Dual Jaw, Complete System, Industry Standard Mount

    Description

    Whether youre a novice at fifth wheel towing or youve been doing it for years, REESE has the gear you need to connect your truck and trailer safely and securely. Designed with state-of-the-art equipment by top-of-the-line engineers, REESEs 16K fifth wheel hitches are built to last! Featuring wide-stance one-piece legs, a dual jaw locking system, side-to-side pivot action to better accommodate hook-ups on uneven ground, quick installation, and strong performance while on the road. When youre done towing, REESEs fifth wheel hitches are easy to remove as well, giving you full access to the bed of your truck in no time. So tow with the confidence that only REESE can provide and make the journey as enjoyable as the destination.

    • Rated up to 20,000 lbs. towing capacity and up to 5,000 lbs. pin weight capacity
    • Fore and aft 44 degree pivot; side-to side 5 degree pivot
    • Vertically adjust from 13-1/2 inches to 17 inches
    • Mounts to in-bed (industry Standard) rails
    • Wide stance, one-piece legs
    • Dual jaw locking system completely surrounds the king pin for significantly reduced wear
    • Rugged appearance
    • Black powder coat over E-coat finish

    Specifications

    BRAND:REESE
    PART NUMBER:30119
    WARRANTY:LIMITED 10 YEAR WARRANTY
    WEIGHT:111.29 LBS
    CAPACITY:20,000 LBS.
    PIN WEIGHT CAPACITY:5,000 LBS.
    GROSS TOWING WEIGHT:20,000 LBS.
    BASE LENGTH:24.94 IN.
    BASE WIDTH:23.69 IN.
    BASE HEIGHT:6.92 IN.
    VERTICAL ADJUSTMENT:13.5 IN. TO 17 IN.
    WELDING REQUIRED:NO
    LOCKABLE:YES
    WIRING HARNESS INCLUDED:NO
    JAW TYPE:DOUBLE
    FORE AND AFT PIVOT:15 DEGREES
    DRILLING REQUIRED:NO
    MOUNTING HARDWARE INCLUDED:NO
    MOUNTING HOLE QUANTITY:4
    HITCH TYPE:STATIONARY
    MATERIAL:STEEL
    SIDE TO SIDE PIVOT:5 DEGREES
    BOLT GRADE:SAE 8
    COLOR:BLACK

    Product Video

    Product Image

    Other Details

    10 Year

    Product Videos

    Custom Field

    Ships via Freight False
    Includes 5th Wheel Hitch
    Mount Type Mounts to Existing Rails
    Weight Capacity 20,000 lbs.
    Style Fixed
    color Black
    warranty 10 Year
    instruction https://www.towingproducts.net/public/support/instructions/N30119.pdf
