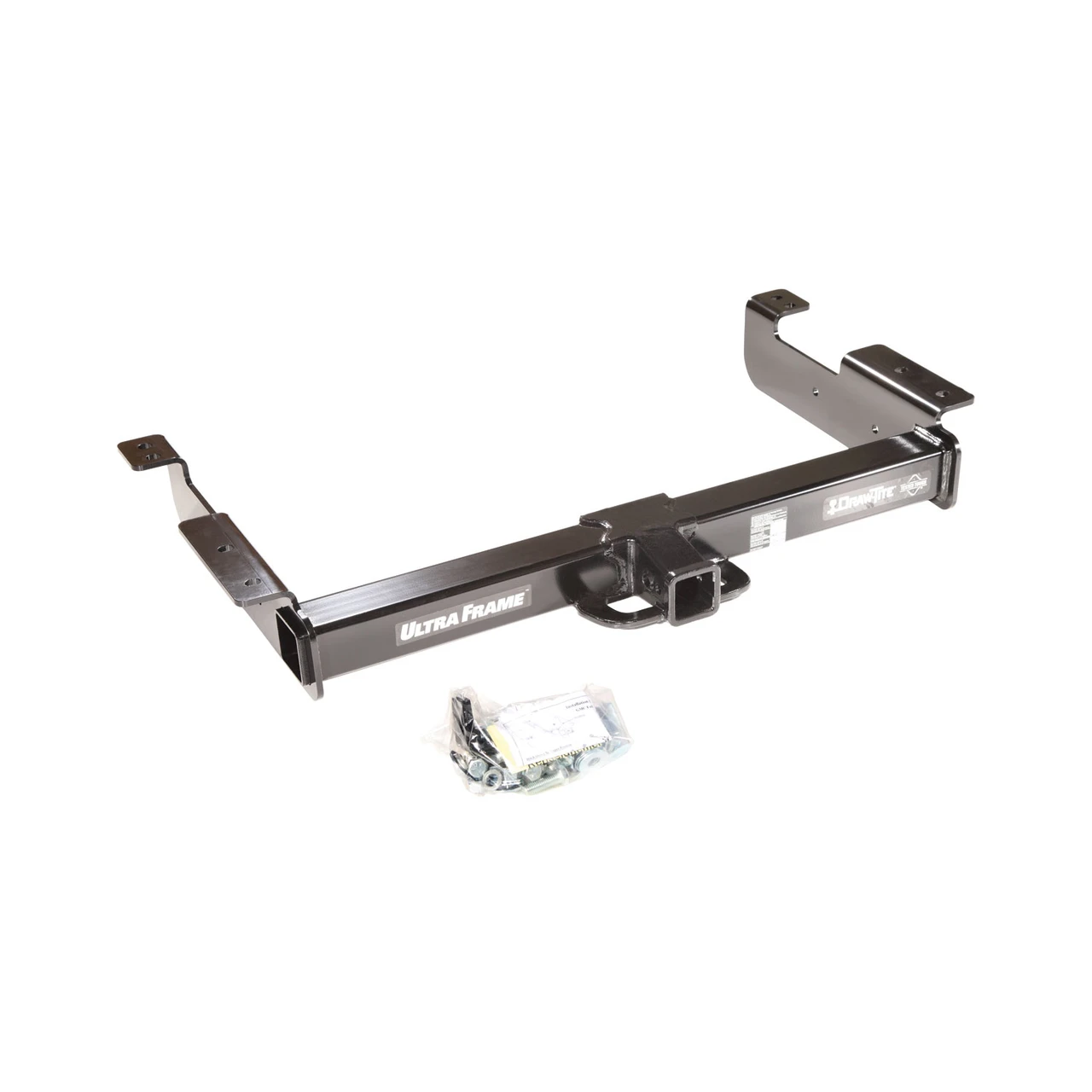

Draw-tite Ultra Frame Class 5 Trailer Hitch, 2 Inch Square Receiver for Select Chevrolet Express 1500, Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 1500, GMC Savana 2500, GMC Savana 3500 41946

Description

DRAW-TITE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 10,000 lbs. gross trailer weight (GTW) and up to 1,500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 13,000 lbs. weight distribution (WD) and 1,300 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.

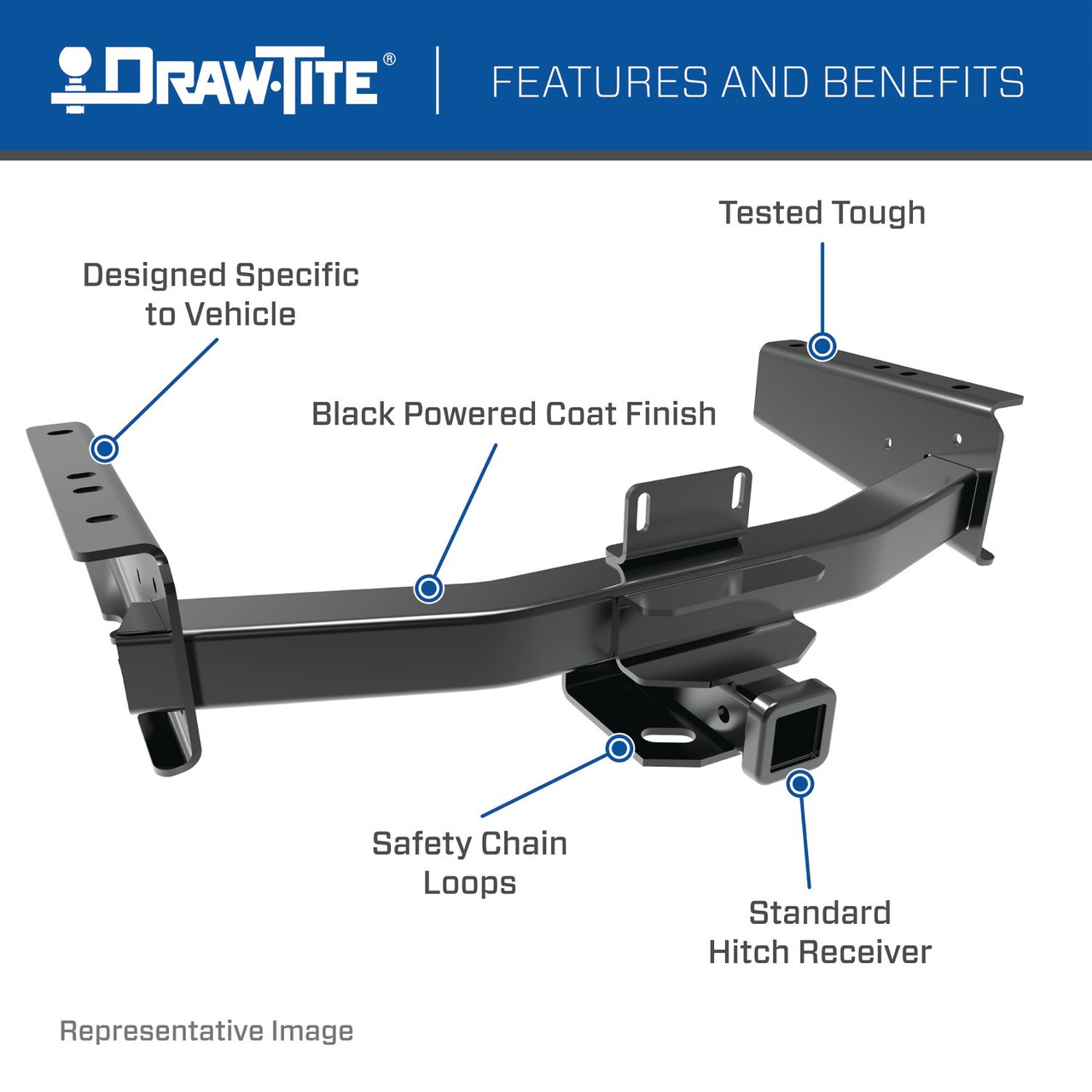

• CUSTOM DESIGNS: DRAW-TITE Class 5 trailer hitches are custom built according to manufacturer specifications to ensure a perfect fit.
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Protected by a two-part black powder coat finish to resist rust and corrosion.
• TESTED: DRAW-TITE hitches are tested to meet and exceed V-5 and SAE J684 standards.
• CAPACITY: Rated for up to 10,000 lbs. GTW and up to 1,500 lbs. TW. For use with Weight Distribution systems of up to 13,000 lbs. WD and 1,300 lbs. WDTW.

Specifications

Product Video
