CURT 16570 R24 5th Wheel Roller for Short Bed Trucks, 24,000 lbs
Installation Instructions
View InstructionsNotes
Includes 5th wheel roller only
Capacity limited to lowest-rated towing component
Includes 5th wheel roller only
Features

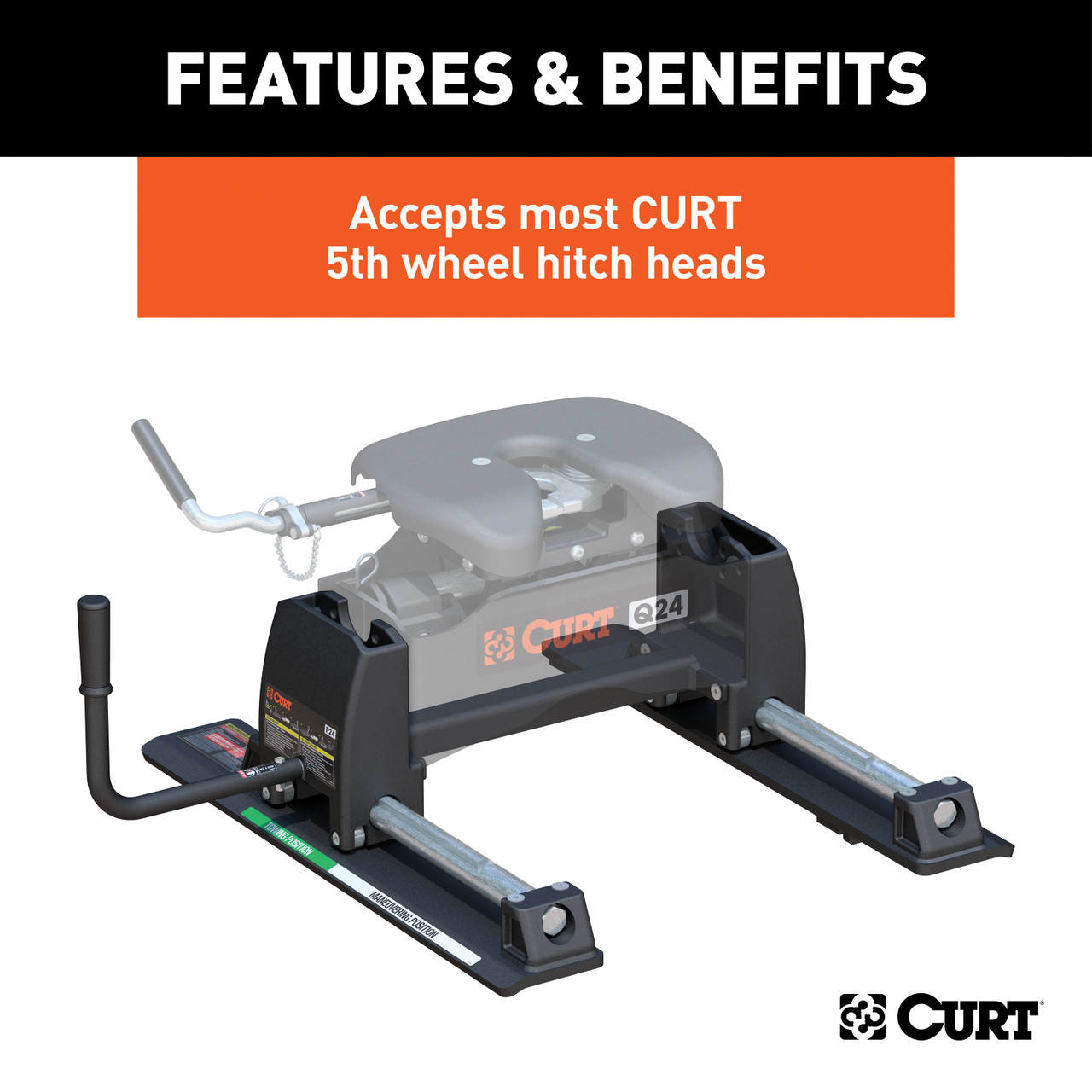

- For use with CURT Q24 5th wheel hitch head #16545

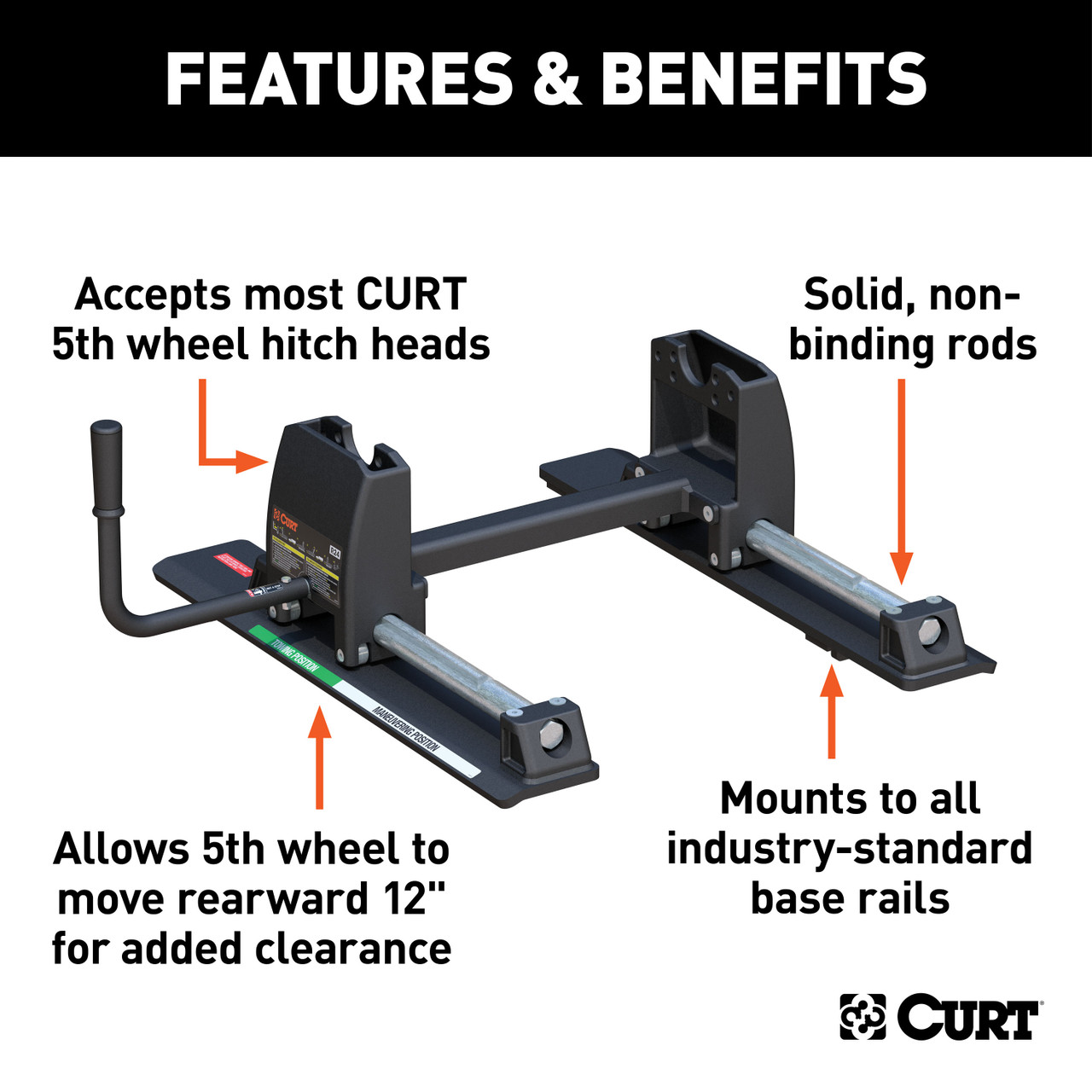

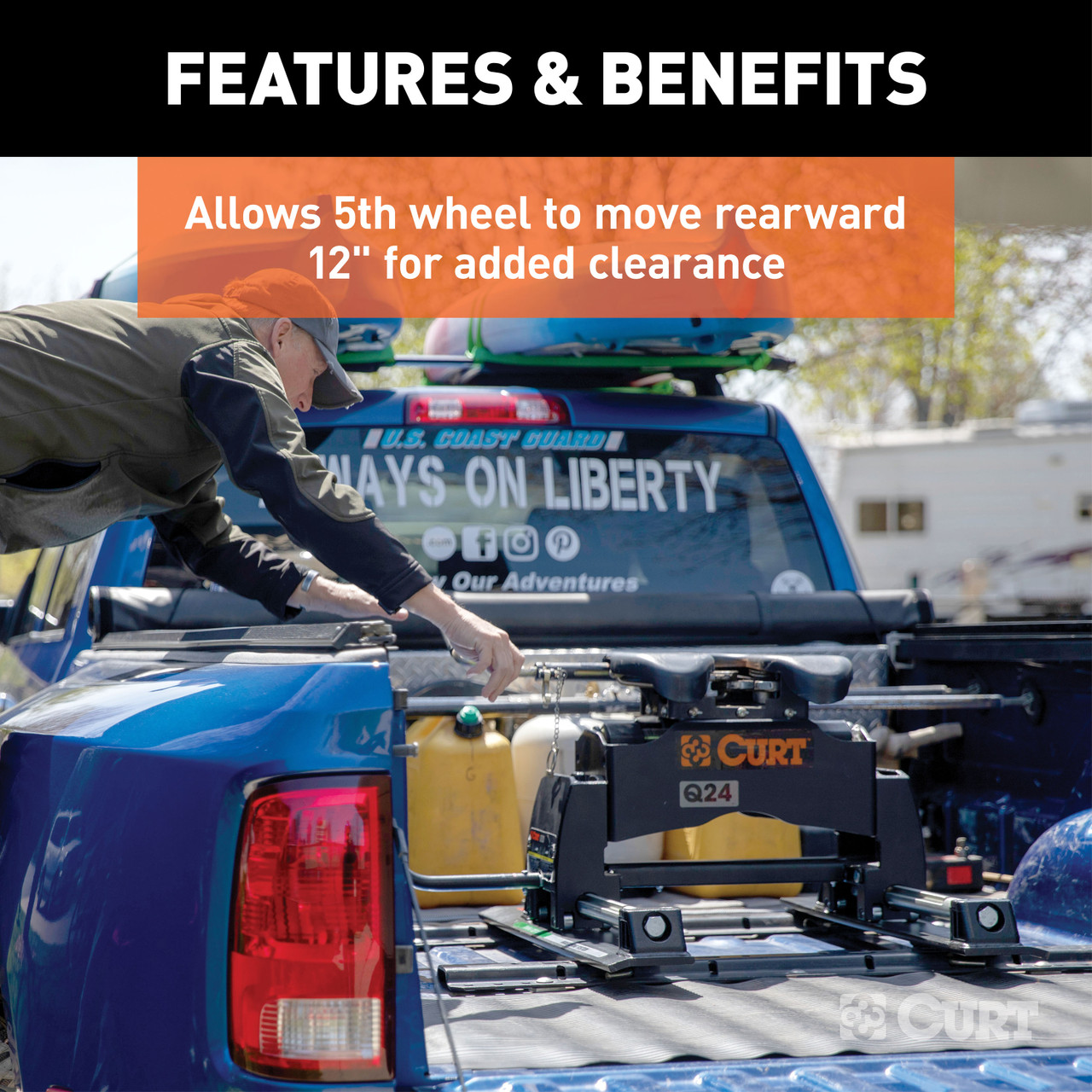

- Allows for forward and rearward movement of 5th wheel hitch for added clearance

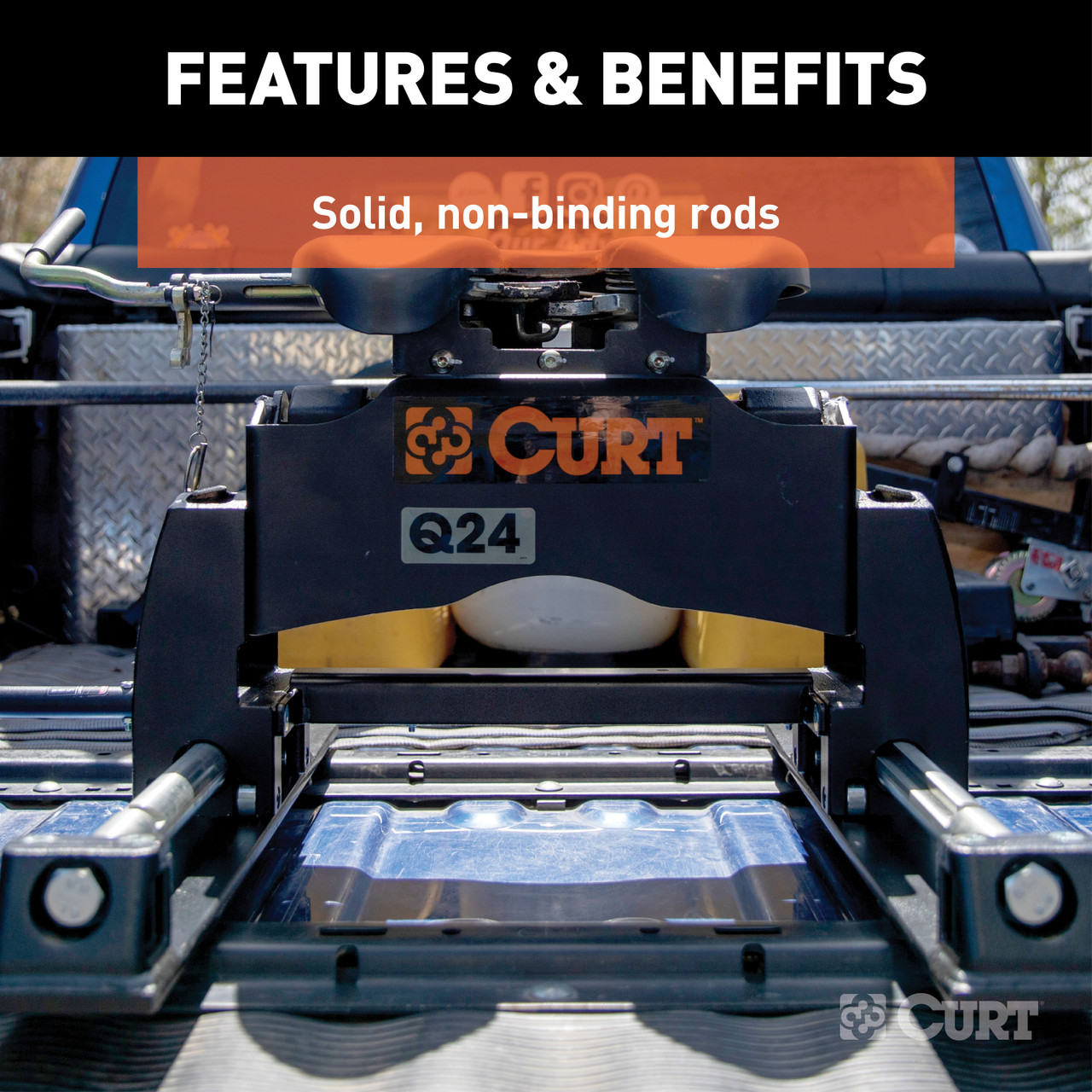

- Constructed with solid, non-binding rods that lock the hitch into position
- Provides 12" of travel while most competitive models only offer 10"
- Uses wheels to bear the weight, instead of hollow rods like competition

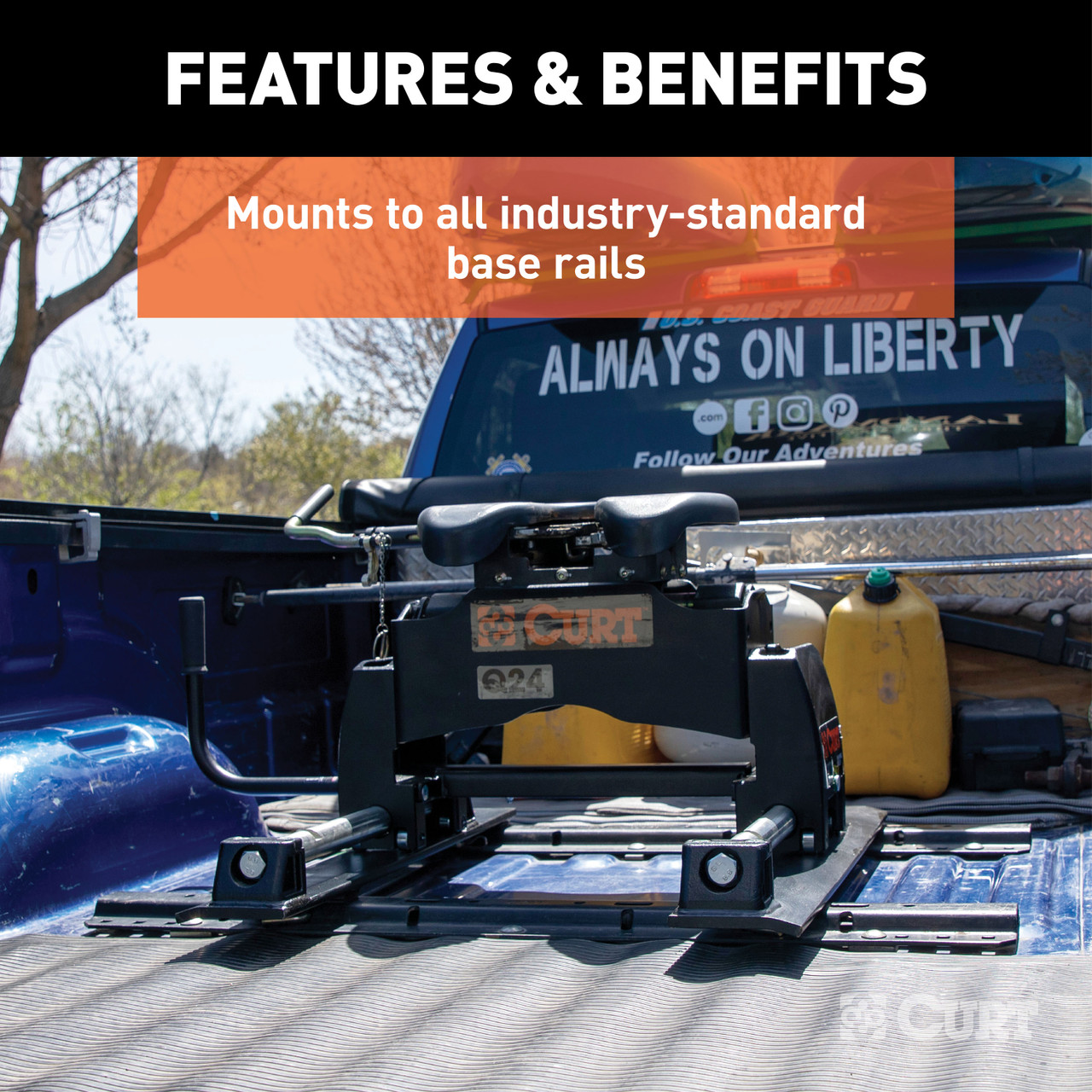

- Mounts to all industry-standard base rails
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)





Specifications
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0
Description
A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel roller turns this gentle giant into the ultimate in mobility too. If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang. When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel roller. Our 5th wheel rollers mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck. CURT 5th wheel rollers feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel rollers are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply moving on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. This 24K 5th wheel roller comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage. It has a towing capacity of 24,000 lbs. and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches.
