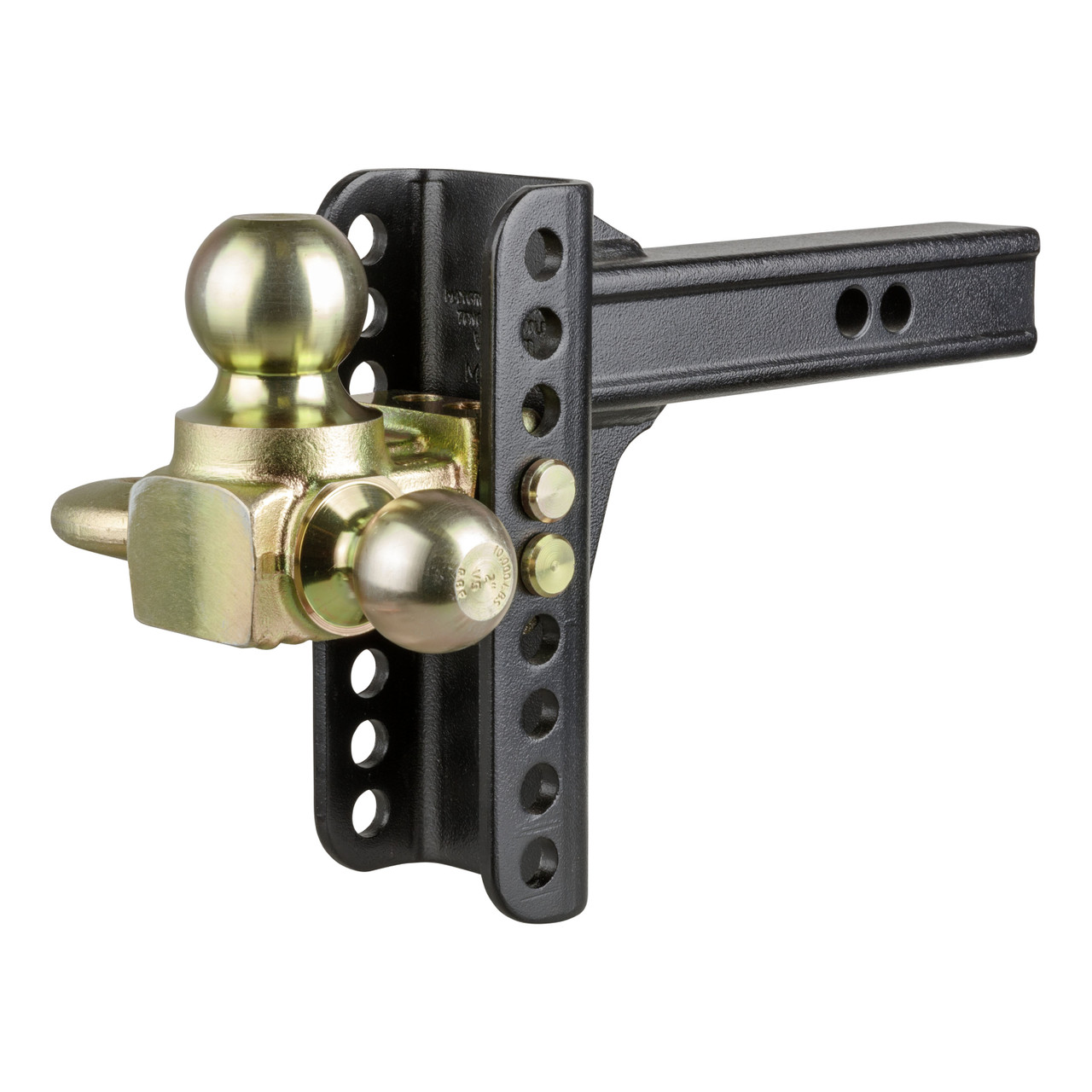

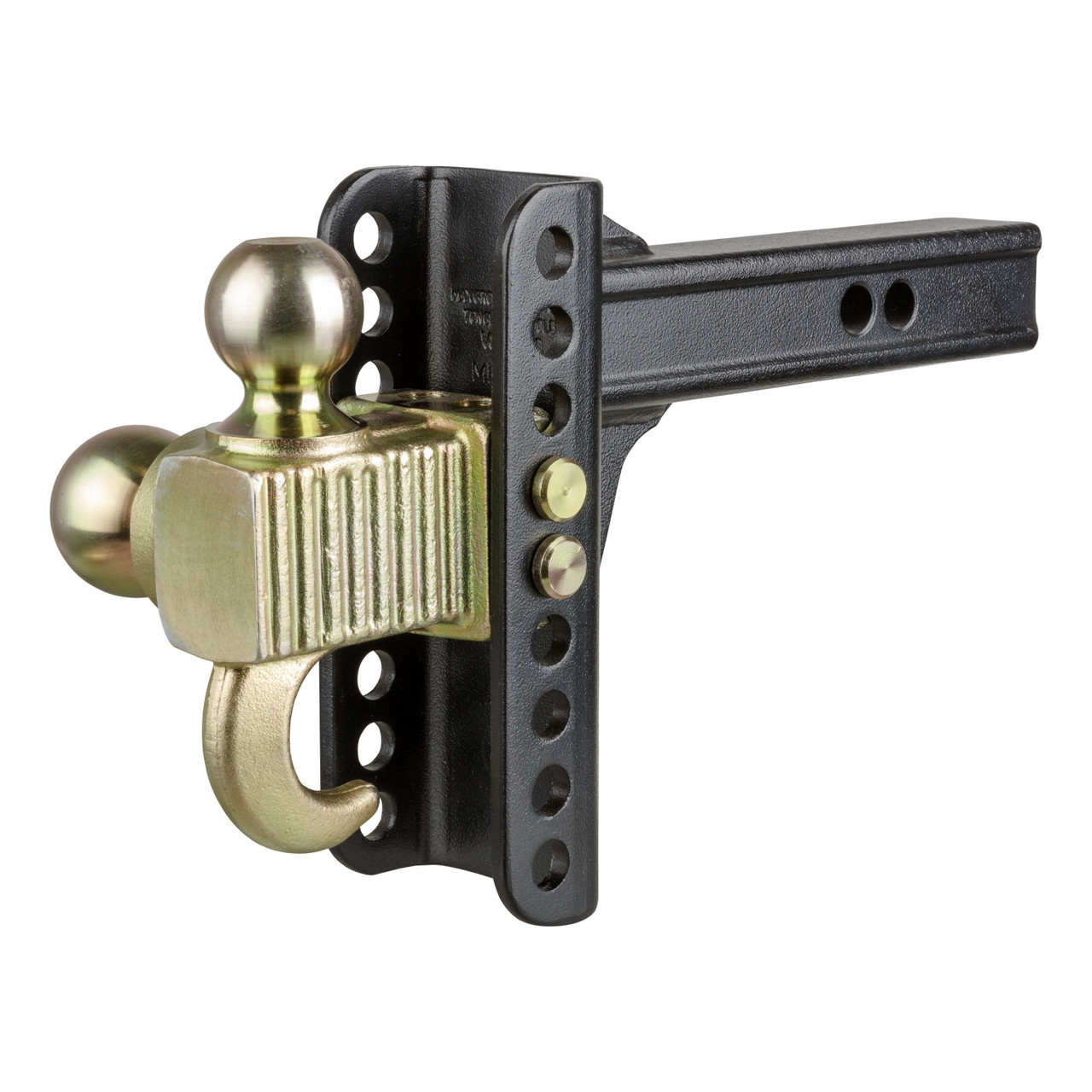

    CURT Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop 45904

    1,269 Write a Review

    Write a Review

    ×
    CURT Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop 45904
    CURT
    CURT Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop 45904

    CURT

    MSRP: $368.95
    Now: $226.19
    (You save $142.76 )
    SKU:
    BKDK45904
    UPC:
    612314055340
    Condition:
    New
    Receiver Size:
    2"
    Note 2:
    Patent# US8,033,563
    Note 1:
    Includes pins & clips for vertical shank only (receiver hitch pin sold separately)
    Ball Diameter:
    2 IN
    instruction:
    https://assets.curtmfg.com/masterlibrary/45904/installsheet/45904_INS.pdf
    Drop:
    6"
    GTW:
    14,000 lbs

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    Installation Instructions

    Frequently Bought Together

    MSRP: $368.95
    Now: $226.19
    (You save $142.76 )
    • Overview
    • Questions and Answers

    Product Description

    CURT 45904 Adjustable Trailer Hitch Ball Mount, Tow Hook Step, 2-Inch Receiver, 6-Inch Drop, 2 and 2-5/16-Inch Balls, 14,000 lbs

    Installation Instructions

    View Instructions

    Notes

    Includes pins & clips for vertical shank only (receiver hitch pin sold separately)
    Patent# US8,033,563

    Brand Logo

    Includes pins & clips for vertical shank only (receiver hitch pin sold separately)

    Product Video

    Features

    • Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop
    • Mounts on trailer hitches with a 2" x 2" receiver tube opening
    • Adjustable channel mount allows for precise trailer leveling
    • Shank can be flipped for a max rise of 5-1/4" and drop of 6"
    • 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 14,000 lbs.
    • Max tow hook capacity is 10,000 lbs. (DO NOT EXCEED TRAILER HITCH CAPACITY)
    • Tow hook perfect for vehicle recovery and straight-line pull applications
    • Non-skid stepping surface for easier truck bed access
    • Two hitch pin holes provide shank lengths of 11" or 12"
    • Built-in anti-rattle helps promote quiet towing
    • Protected by a highly durable carbide powder coat finish
    • Dual-ball attachment features zinc-plated finish
    • Limited lifetime warranty (one-year finish, one-year parts)
    Product image Product image Product image Product image Product image Product image

    Specifications

    Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
    Receiver Tube Size (Inches): 2 IN
    Finish: Blank
    Ball Diameter (Inches): 2 IN
    Installation Time Exact (Minutes): 0

    Description

    If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2" x 2" and features a multipurpose head with two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features a hitch step for easier truck bed access, as well as a tow hook for straight-line pull applications (max tow hook capacity is 10,000 lbs.; DO NOT EXCEED TRAILER HITCH CAPACITY). The head attaches to an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4" rise or lowered to a maximum of 6" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance.

    Product Videos

    Custom Field

    Receiver Size 2"
    curtwhlocations D01, D25, D30, D60
    Note 2 Patent# US8,033,563
    Note 1 Includes pins & clips for vertical shank only (receiver hitch pin sold separately)
    Ball Diameter 2 IN
    instruction https://assets.curtmfg.com/masterlibrary/45904/installsheet/45904_INS.pdf
    Drop 6"
    GTW 14,000 lbs
