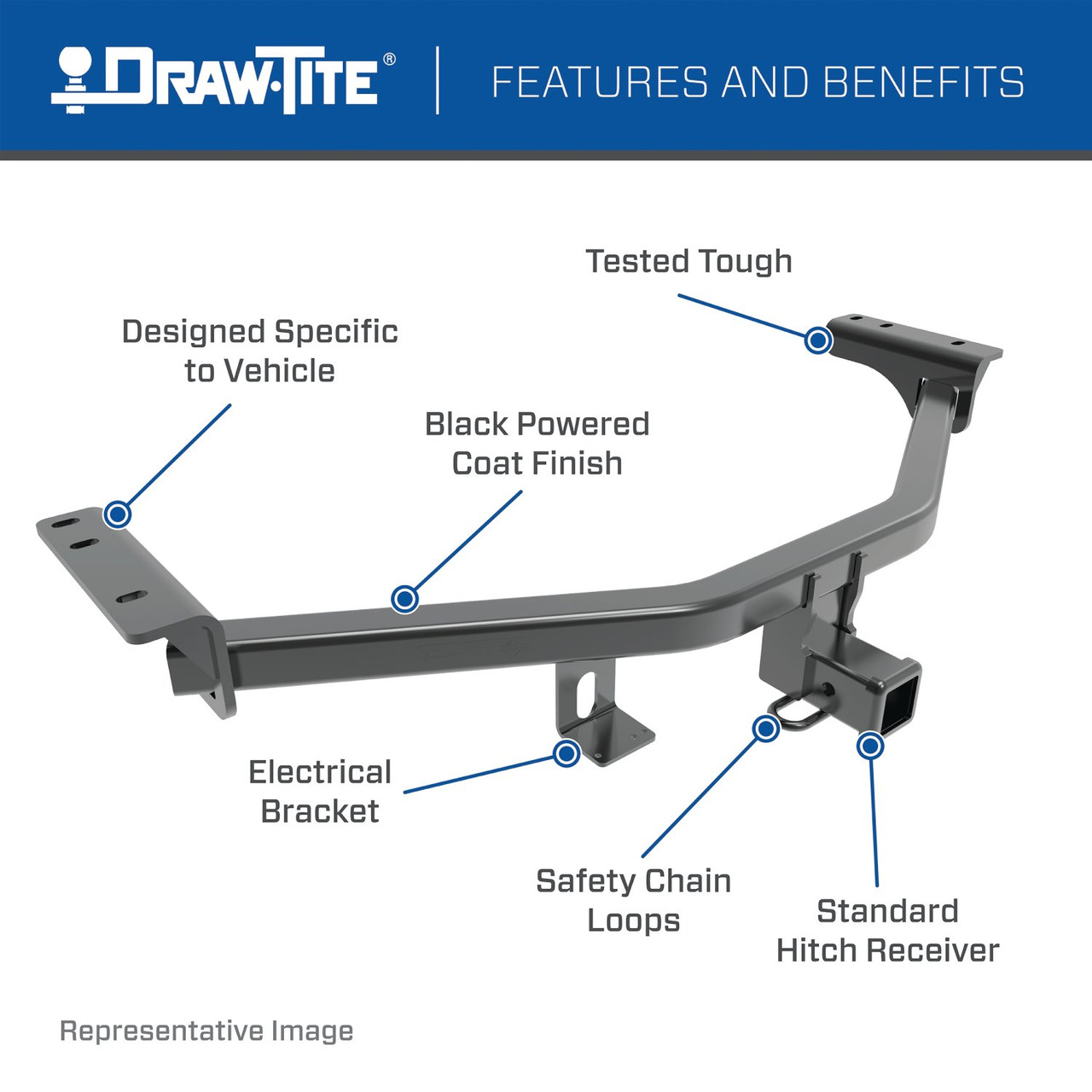

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75836 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28.2 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw-TiteĀ® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2021 | Hyundai Tucson | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
| 2016 - 2018 | Hyundai Tucson | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson 75836 (Part #DT75836) is designed to fit the 2016-2021 Hyundai Tucson.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson 75836 (Part #DT75836) fits the following vehicles: 2016-2021 Hyundai Tucson. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson 75836 (Part #DT75836) fits 2016-2021 Hyundai Tucson models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson 75836 (Part #DT75836) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 75836 fits 2016-Current Hyundai Tucson models. For the most up-to-date information regarding specific application years and trim levels, visit the Horizon Global website at www.horizonglobal.com.
The maximum gross trailer weight is 3500 lb. (1587 kg) and the maximum tongue weight is 525 lb. (238 kg) for weight carrying mode. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits. This hitch is not designed for use with springbars.
You will need: a ratchet, torque wrench, safety glasses, sockets, a flat head screwdriver, and a 16 mm socket. A professional installer is recommended if you are not comfortable performing the installation yourself.
If your Hyundai Tucson is equipped with plastic underbody panels (located under the rear bumper and behind the rear wheels), you must remove them before installing the hitch. Remove the 3 plastic expansion fasteners from each panel using a standard screwdriver, pull down to remove, and set aside for reinstallation after hitch installation.
Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this easier. Rotate the hitch and raise it into position. Install 4 bolts on the passenger side and 3 bolts on the driver side, then tighten all fasteners to the specified torque.
All M10 x 1.25 x 30 mm CL10.9 bolts must be tightened to 42 Lb.-Ft. (57 NĀ·M) using a torque wrench. Proper torque is essential to keep the hitch securely mounted to your vehicle when towing.
A total of 7 bolts are used: 4 M10 x 1.25 x 30 mm CL10.9 bolts on the passenger side and 3 M10 x 1.25 x 30 mm CL10.9 bolts on the driver side. Each bolt is paired with a 3/8" conical tooth washer with the teeth side facing against the hitch.
The teeth side of each 3/8" conical tooth washer must face against the hitch. This orientation is critical for proper fastening.
After installation, reinstall the plastic underbody panels if they were removed. Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted to your vehicle before towing.
Always wear your seatbelt when towing. Slow down when towing and never exceed posted speed limits. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steadyādo not apply brakes or speed up. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's maximum capacity (3500 lb. gross trailer weight, 525 lb. tongue weight). Always wear safety glasses during installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes periodic inspection to maintain secure mounting during towing.
The manual notes that removing the rubber isolators and lowering the exhaust may make insertion easier, but does not state this is required. You may attempt installation without removing the exhaust, but if the hitch does not fit over the tailpipe, you will need to remove the isolators and lower the exhaust to proceed.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
No. This hitch is not designed for use with springbars. Do not use weight-distributing springbars with this product.
Professional installation is recommended if you do not feel comfortable performing the installation yourself or are in need of assistance. The average installation time for professional installers is 30 minutes. Contact a professional installer if you have any doubts about your ability to complete the installation safely.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch.
Yes, part number 75836 is designed for 2016-Current Hyundai Tucson. Check the Horizon Global website for the most current trim level compatibility.
Maximum gross trailer weight is 3500 lb. (1587 kg) and maximum tongue weight is 525 lb. (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, torque wrench, safety glasses, sockets, flat head screwdriver, and 16 mm socket. Professional installation is recommended if you are not comfortable doing it yourself.
Yes, if equipped, you must remove the 2 plastic underbody panels (1 each side under the rear bumper and behind the rear wheels) by removing 3 plastic expansion fasteners from each panel.
All M10 x 1.25 x 30 mm CL10.9 bolts must be tightened to 42 Lb.-Ft. (57 NĀ·M) using a torque wrench.
No. This hitch is not designed for use with springbars.
7 bolts total: 4 M10 x 1.25 x 30 mm CL10.9 bolts on the passenger side and 3 on the driver side, each with a 3/8" conical tooth washer (teeth facing the hitch).
Reinstall the plastic underbody panels. Check frequently that all fasteners and the ball are properly tightened and the hitch is securely mounted before towing.
