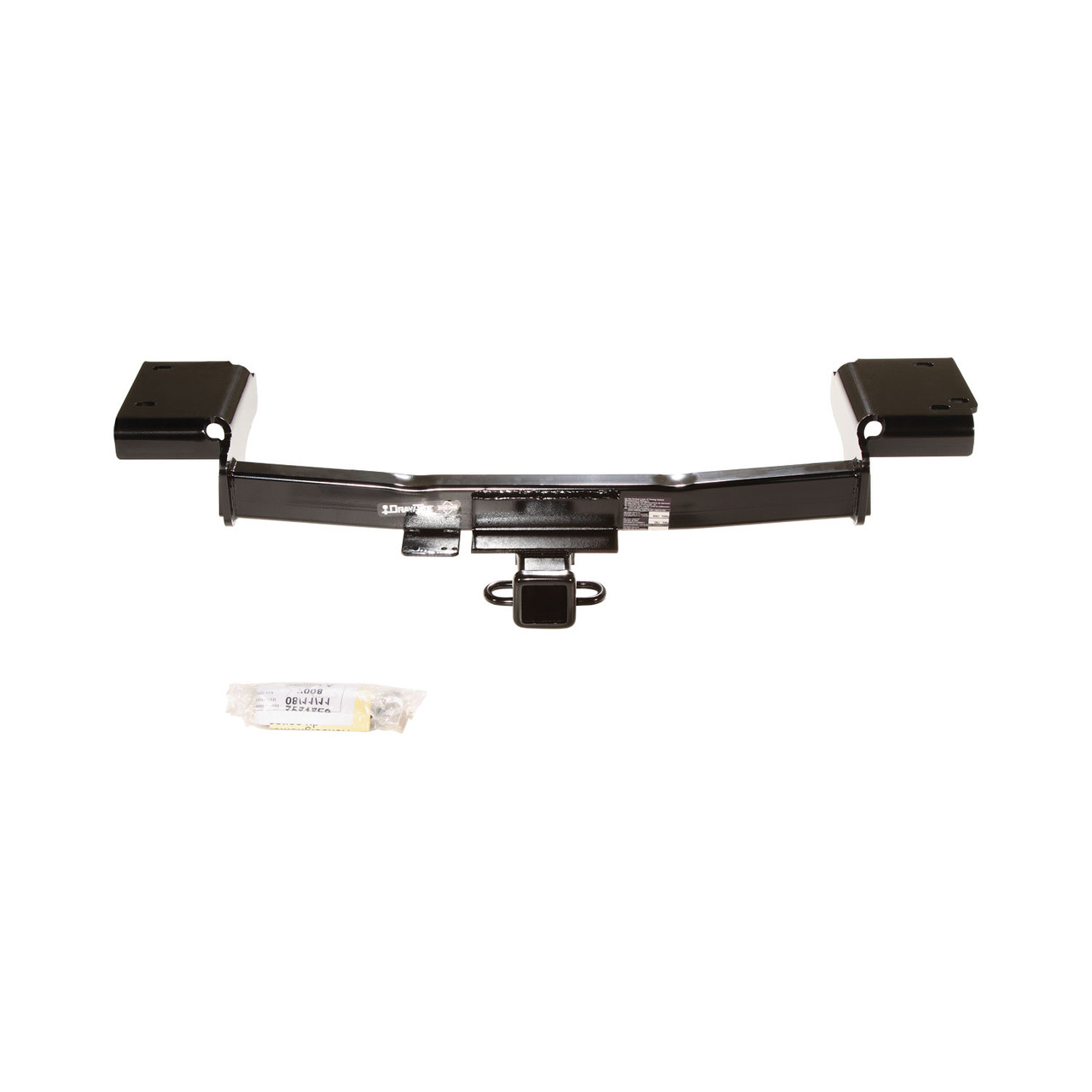

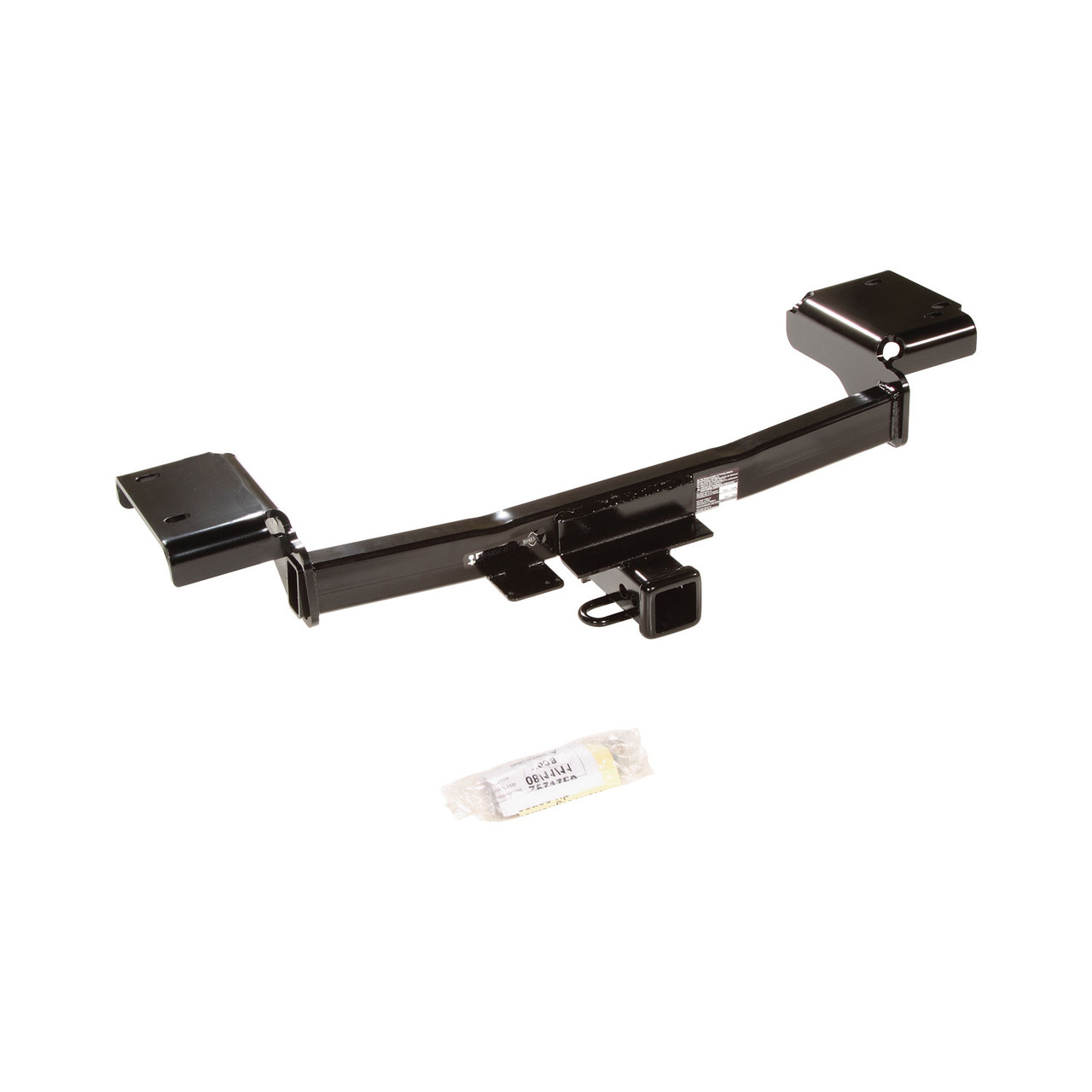

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,250 lbs. weight distribution (WD) and 525 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75717 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 32 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| MOUNTING HARDWARE INCLUDED: | YES |
| DRILLING REQUIRED: | NO |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,250 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 525 LBS. |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2015 | Hyundai Tucson | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 525/5,250 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2011 - 2016 | Kia Sportage | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 525/5,250 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 75717 (Part #DT75717) fits the following vehicles: 2010-2015 Hyundai Tucson; 2011-2016 Kia Sportage. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 75717 (Part #DT75717) is designed to fit the 2010-2015 Hyundai Tucson.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 75717 (Part #DT75717) fits 2010-2015 Hyundai Tucson models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Tucson, KIA Sportage 75717 (Part #DT75717) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75717 is designed to fit both Hyundai Tucson and Kia Sportage vehicles. The installation instructions cover both models, with wiring access points specified as SUV1 and SUV2 for Tucson, and SUV1 and SUV5 for Sportage.
The maximum towing capacity depends on the hitch type. A weight-distributing hitch supports a maximum gross trailer weight of 5250 lb (1816 kg) with a maximum tongue weight of 525 lb (182 kg). A weight-carrying ball mount supports a maximum gross trailer weight of 3500 lb (1589 kg) with a maximum tongue weight of 525 lb (159 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
A 16mm wrench and a torque wrench are required. No drill bits are needed, as the hitch uses existing weld nuts in the vehicle frame and does not require drilling.
Yes. You must raise the vehicle with a hoist or ramps to access the underside of the vehicle where the hitch attaches to the frame.
Yes. You must support the exhaust system, remove the rear hangers, and lower the exhaust until the hitch can be positioned over the muffler tips and aligned with the existing weld nuts in the bottom of the frame. After installation, you must reinstall the rear hangers.
The hitch includes four M10 x 1.25 x 30mm Class 10.9 hex bolts and four 3/8" conical washers. These fasteners attach the hitch to the existing weld nuts in the vehicle frame.
No. During step 3, loosely install the M10 hex bolts with conical washers at all four attachment points. Tighten them fully only in step 4 using a torque wrench after all bolts are in place.
All M10 Class 10.9 fasteners must be tightened to 42 lb.-ft. (57 N·m) using a torque wrench.
The hitch aligns with and attaches to existing weld nuts located on both sides of the bottom of the frame. The hitch slots align with these weld nuts, and the four M10 bolts pass through the hitch and into these existing weld nuts.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair or continue using a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut access or attachment holes with a torch. The hitch uses existing weld nuts in the frame and does not require drilling or cutting.
Observe safety precautions when working beneath a vehicle and wear eye protection. The vehicle must be properly supported on a hoist or ramps. Support the exhaust system while removing and reinstalling hangers.
If additional exhaust clearance is required, bend the exhaust hanger rod appropriately. This adjustment should be made after the hitch is installed if needed.
Yes, part 75717 fits both Hyundai Tucson and Kia Sportage vehicles.
You need a 16mm wrench, a torque wrench, and a vehicle hoist or ramps. No drilling is required.
Tighten all M10 Class 10.9 bolts to 42 lb.-ft. (57 N·m) using a torque wrench.
Yes, you must lower the exhaust system by removing the rear hangers to position the hitch over the muffler tips and align it with the frame weld nuts. Reinstall the hangers after installation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all body panel holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
