Reese Towpower
Verify Fitment
Select your vehicle to confirm this part fits.

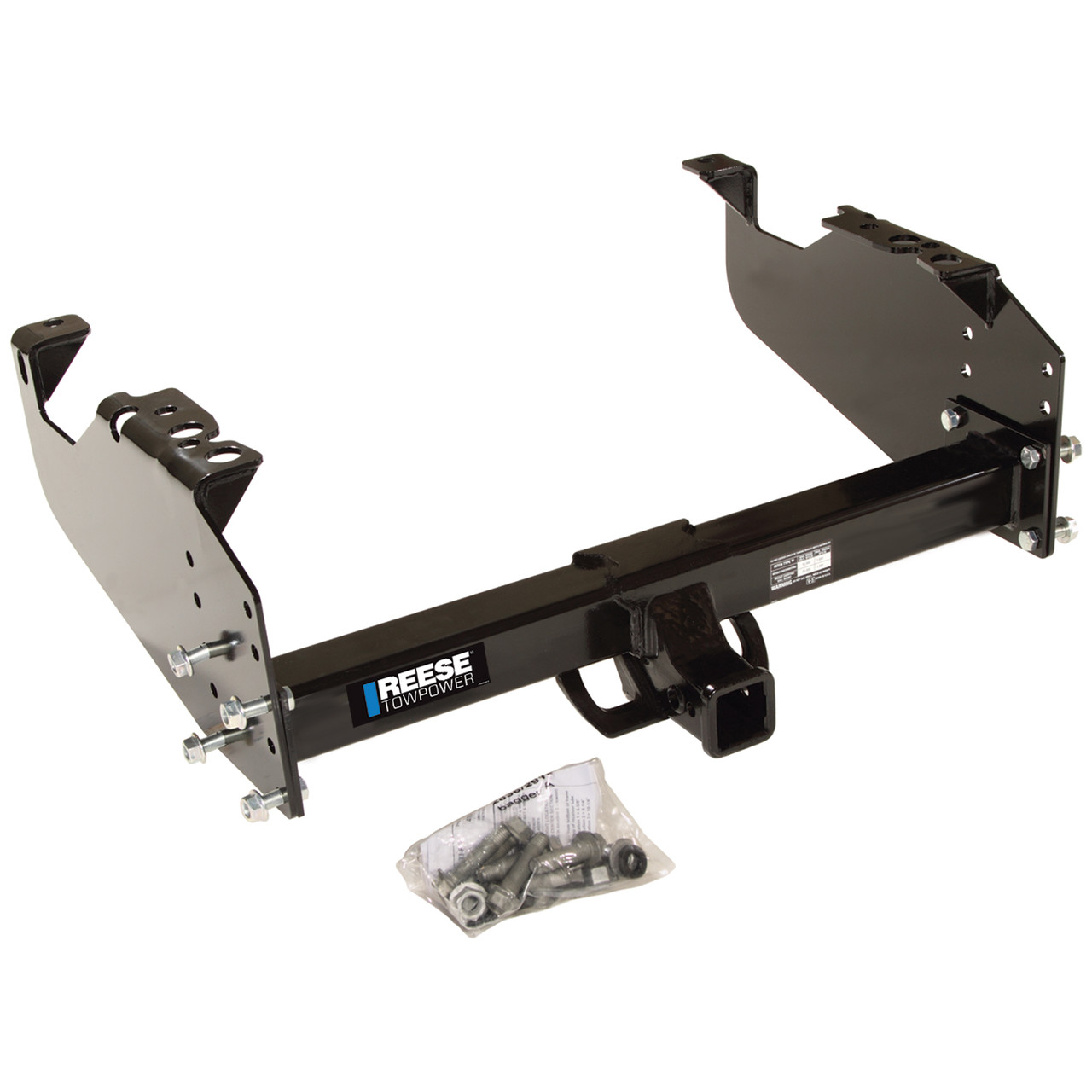

REESE Class 5 trailer hitches are the choice of professionals and big toy haulers who need to get the job done! These Class 5 heavy-duty hitches are rated for up to 15,000 lbs. gross trailer weight (GTW) and up to 1,600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 16,000 lbs. weight distribution (WD) and 1,600 lbs. weight distribution tongue weight (WDTW). REESE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The 2 inch square receiver tube opening, bigger chain loops, tighter ball mount fit, and reinforced pin holes make these heavy-duty hitches ideal for toy haulers and commercial vehicles alike. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. REESE trailer hitches are tested to exceed V-5 and SAE J684 standards. REESE: Helping you enjoy the journey as much as the destination.
| BRAND: | REESE TOWPOWER |
| PART NUMBER: | 96947 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 84.4 LBS |
| GROSS TOWING WEIGHT: | 15,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,600 LBS. |

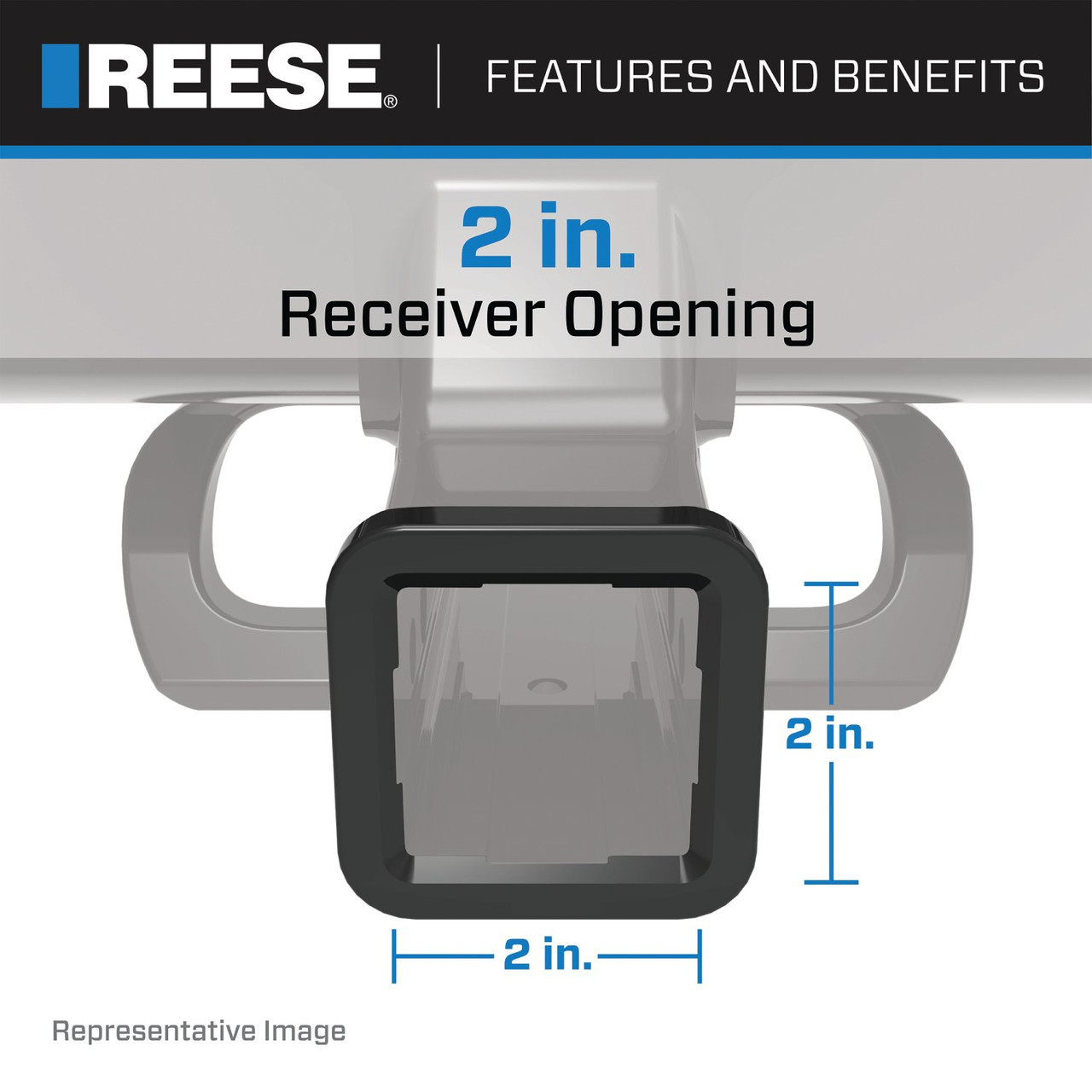

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | V |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 16,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,600 LBS. |

Reese Towpower delivers the towing hardware most drivers reach for: receiver hitches across multiple classes, ball mounts, hitch balls, pins, clips, safety chains, wiring and hitch accessories. Backed by a towing pedigree dating to 1952, the line uses all-welded construction and corrosion-resistant finishes, with custom-fit hitches matched to vehicle make, model and year.
The Reese story starts in 1952, when Margaret Reese challenged her husband TJ to do something about travel trailers rocking whenever anyone walked through them. A few years later he built the first pair of stabilising jacks. The idea was simple and it worked, and it changed how the RV industry thought about trailer stability. From that beginning the Reese name grew into a full towing line covering fifth wheel hitches, pin boxes, weight distribution systems and accessories, and Reese Towpower carries that engineering into the products most owners buy off the shelf.
Receiver trailer hitches anchor the range, offered across the classes needed for everything from a small utility trailer to livestock and job-site loads. Construction is all-welded rather than bolted at the stress points, and each hitch is tested against published standards for strength and safety. Custom-fit hitches are engineered to the vehicle manufacturer's weight specifications for a given model and model year, so mounting points line up with existing frame holes and the finished installation sits where it should. Exclusive paint finishes resist rust and corrosion through years of road salt, and hitches carry a nationwide limited lifetime warranty.
No towing setup is complete without the connecting hardware, and Reese Towpower covers it comprehensively. Ball mounts come in fixed, adjustable and specialty forms with a range of rises and drops to level a trailer properly. Hitch balls are offered in the standard diameters and shank sizes, matched to coupler and load rating.
The towing accessories line fills in everything else: hitch pins and clips, locks, receiver tube covers, and safety chains rated to the load being pulled. For most drivers this is where a towing purchase actually begins, and having the whole chain of components from one engineering source keeps ratings consistent end to end.
56 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 1963 - 1986 | Chevrolet C10 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1963 - 1986 | Chevrolet C20 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1988 - 1991 | Chevrolet C2500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1963 - 1986 | Chevrolet C30 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1988 - 1991 | Chevrolet C3500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2003 - 2009 | Chevrolet C4500 Kodiak | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 2003 - 2009 | Chevrolet C5500 Kodiak | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 1999 - 2009 | Chevrolet C6500 Kodiak | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 1999 - 2009 | Chevrolet C7500 Kodiak | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 2003 - 2009 | Chevrolet C8500 Kodiak | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 1963 - 1986 | Chevrolet K10 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1963 - 1986 | Chevrolet K20 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1988 - 1991 | Chevrolet K2500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1973 - 1974, 1977 - 1986 | Chevrolet K30 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 1988 - 1991 | Chevrolet K3500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2001 - 2007 | Chevrolet Silverado 3500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2007 - 2025 | Chevrolet Silverado 3500 HD | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2007 - 2010 | Dodge Ram 3500 | Cab & Chassis | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2008 - 2010 | Dodge Ram 4500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only with 34" Wide Frame |
| 2008 - 2010 | Dodge Ram 5500 | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only with 34" Wide Frame |
| 2005 - 2020 | Ford F-350 Super Duty | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 1999 - 2004 | Ford F-350 Super Duty | Cab & Chassis | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2008 - 2016 | Ford F-450 Super Duty | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
| 2017 - 2025 | Ford F-450 Super Duty | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only |
| 1999 - 2007 | Ford F-450 Super Duty | — | Class 5 Trailer Hitch: 15000 lbs 1,600/15,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,600/16,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes Cab & Chassis Only with 34" Wide Frame |
The Reese Towpower Class 5 Trailer Hitch, 2-Inch Receiver, Black 96947 (Part #RT96947) fits the following vehicles: 1963-1986 Chevrolet C10; 1963-1986 Chevrolet C20; 1988-1991 Chevrolet C2500; 1963-1986 Chevrolet C30; 1988-1991 Chevrolet C3500; 2003-2009 Chevrolet C4500 Kodiak; 2003-2009 Chevrolet C5500 Kodiak; 1999-2009 Chevrolet C6500 Kodiak; 1999-2009 Chevrolet C7500 Kodiak; 2003-2009 Chevrolet C8500 Kodiak; 1963-1986 Chevrolet K10; 1963-1986 Chevrolet K20; 1988-1991 Chevrolet K2500; 1973-1986 Chevrolet K30; 1988-1991 Chevrolet K3500; 2001-2007 Chevrolet Silverado 3500; 2007-2025 Chevrolet Silverado 3500 HD; 2007-2010 Dodge Ram 3500; 2008-2010 Dodge Ram 4500; 2008-2010 Dodge Ram 5500; 1999-2020 Ford F-350 Super Duty; 1999-2025 Ford F-450 Super Duty; 1999-2025 Ford F-550 Super Duty; 1963-1965 GMC 1000 Series; 1963-1965 GMC 1500 Series; 1963-1965 GMC 2500 Series; 1975-1978 GMC C15; 1967-1974 GMC C15/C1500; 1979-1999 GMC C1500; 1967-1978 GMC C25; 1979-2000 GMC C2500; 1967-1978 GMC C35; 1979-2000 GMC C3500; 2003-2009 GMC C4500 Topkick; 2003-2009 GMC C5500 Topkick; 1999-2009 GMC C6500 Topkick; 1999-2009 GMC C7500 Topkick; 1967-1978 GMC K15; 1979-1999 GMC K1500; 1967-1978 GMC K25; 1979-2000 GMC K2500; 1968-1978 GMC K35; 1979-2000 GMC K3500; 2001-2007 GMC Sierra 3500; 2007-2024 GMC Sierra 3500 HD; 2011-2012 Ram Model 30-B; 2008-2009 Sterling Truck Bullet 45; 2008-2009 Sterling Truck Bullet 55. Always verify your specific year, make, and model before ordering.
Yes, the Reese Towpower Class 5 Trailer Hitch, 2-Inch Receiver, Black 96947 (Part #RT96947) is designed to fit the 1963-1986 Chevrolet C10.
The Reese Towpower Class 5 Trailer Hitch, 2-Inch Receiver, Black 96947 (Part #RT96947) fits 1963-1986 Chevrolet C10 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Reese Towpower Class 5 Trailer Hitch, 2-Inch Receiver, Black 96947 (Part #RT96947) Drilling is required for installation. Basic hand tools are typically all you need.
Order by 2 PM ET, Monday–Friday, and it ships the same day.
Total for 4 items: $137.05$134.54
No reviews have been added for this product.
