DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 7,500 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75882 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 51 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 750 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 7,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2024 | Ram ProMaster 1500 | Class 4 Trailer Hitch: 6000 lbs 750/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2014 - 2024 | Ram ProMaster 2500 | Class 4 Trailer Hitch: 6000 lbs 750/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2014 - 2024 | Ram ProMaster 3500 | Class 4 Trailer Hitch: 6000 lbs 750/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/7,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 75882 (Part #DT75882) fits the following vehicles: 2014-2024 Ram ProMaster 1500; 2014-2024 Ram ProMaster 2500; 2014-2024 Ram ProMaster 3500. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 75882 (Part #DT75882) fits 2014-2024 Ram ProMaster 1500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 75882 (Part #DT75882) is designed to fit the 2014-2024 Ram ProMaster 1500.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 75882 (Part #DT75882) Drilling is required for installation. Basic hand tools are typically all you need.
No. The 75882 hitch is designed for Ram Promaster vehicles except Extended models. If you have an Extended model, you will need a different hitch.
The 75882 hitch has two ratings depending on the type: Weight Distribution hitches can tow a maximum gross trailer weight of 7,500 lb with a tongue weight of 750 lb. Weight Carrying Ball Mount hitches can tow a maximum gross trailer weight of 6,000 lb with a tongue weight of 750 lb. Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch ratings.
You will need wrenches in the following sizes: 16mm, 3/4", and T-30. A torque wrench is also required to tighten fasteners to specification. The manual lists no other equipment as required.

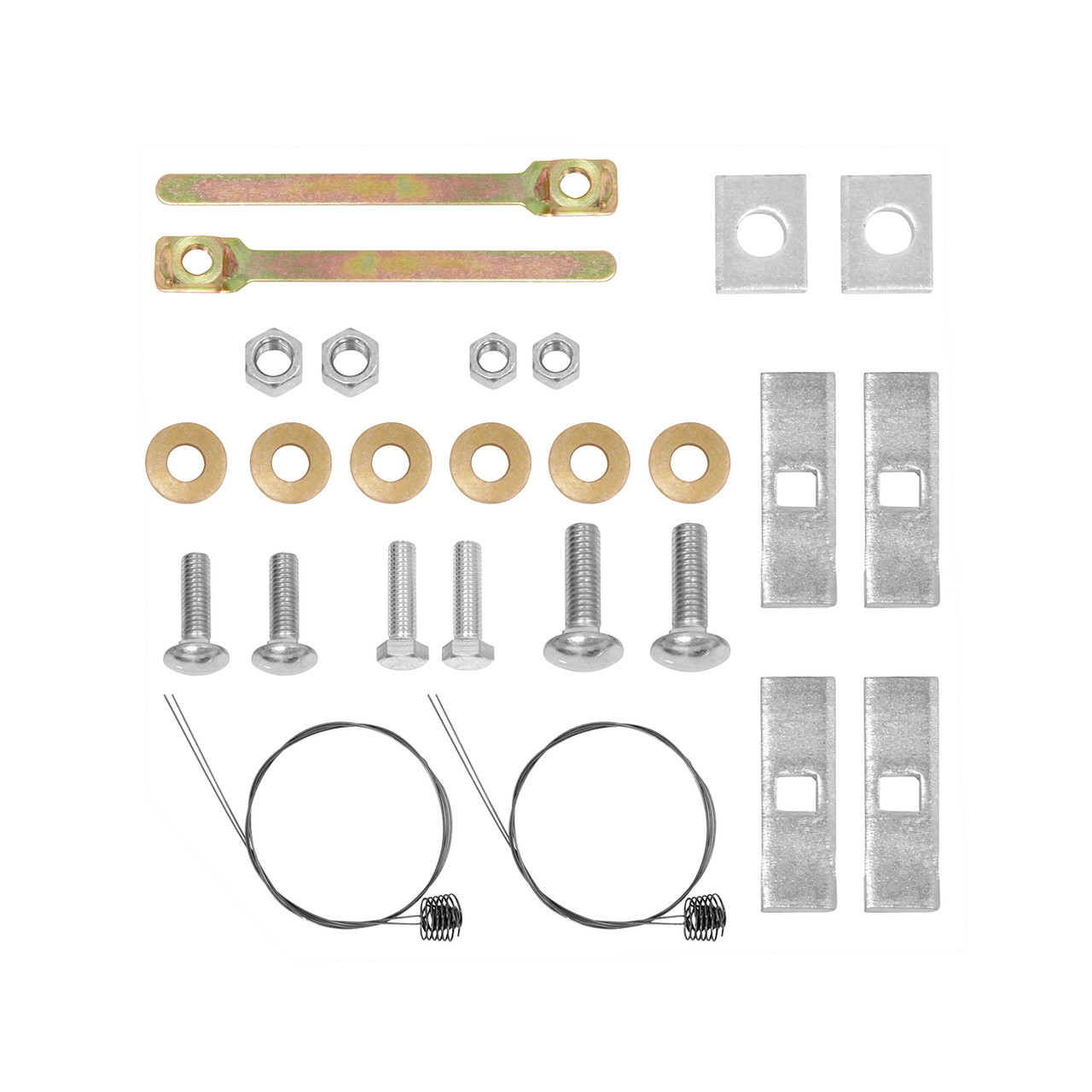

The 75882F fastener kit includes: (2) ½"-13 nut plates, (2) 7/16"-14 x 1.75 carriage bolts, (2) ½"-13 x 1.50 GR5 hex bolts, (2) 1/4" x 3.00 x 1.00 spacer blocks, (4) ½" conical washers, (2) 7/16" conical washers, (2) ½"-13 x 2.25 Gr. 5 carriage bolts, (2) 7/16"-14 hex nuts, (4) ¼" x 3.00 x 1.00 spacer blocks, (2) ½" fish wire, (2) 5/8" x 2.0 x 1.5 spacer blocks, (2) 7/16" fish wire, and (2) ½"-13 hex nuts.
Yes. The first step of the installation process is to lower the spare tire. After installation is complete, you will raise the spare tire back into place.
Yes. Step 2 of the installation requires removing 8 torque head screws (4 on top, 4 on bottom) that attach the bumper fascia to the bumper under structure. After the hitch is installed and all fasteners are tightened, you will reinstall the bumper fascia in step 9.
Raise one side of the forward attachment above the leaf spring, then repeat on the other side. The hitch should be positioned as shown in Figure 1 of the manual.
Remove the rubber grommets first. Then use the fish wire (included in the fastener kit) to insert the two 7/16" bolts and two ½" bolts into their respective positions. The fish wire allows you to guide the bolts through the frame without the grommets in place.
Hand-tighten all fasteners first in the order specified in the installation steps: (1) ½" bolts into nut plates, (2) 7/16" bolts to the hitch, (3) ½" bolts through spacer blocks. Once all fasteners are hand-tight, use a torque wrench to tighten them to the specified torque values.
Tighten all 7/16"-14 Grade 5 fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).
Tighten all ½"-13 Grade 5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M).
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safety.
The 75882 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
No, the 75882 is designed for Ram Promaster except Extended models only.
Weight Distribution: 7,500 lb gross trailer weight, 750 lb tongue weight. Weight Carrying Ball Mount: 6,000 lb gross trailer weight, 750 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Wrenches: 16mm, 3/4", T-30. A torque wrench is required to tighten fasteners to specification.
Yes. Lower the spare tire first, then remove 8 torque head screws to detach the bumper fascia before raising the hitch into place.
7/16"-14 Grade 5 fasteners: 50 Lb.-Ft. (68 N·M). ½"-13 Grade 5 fasteners: 75 Lb.-Ft. (102 N·M). Use a torque wrench after hand-tightening all fasteners.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. Check fasteners and ball frequently after installation. Plug any holes if the hitch is removed to prevent water and exhaust fumes from entering.
