DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 8,000 lbs. gross trailer weight (GTW) and up to 800 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75791 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 46.2 LBS |
| GROSS TOWING WEIGHT: | 8,000 LBS. |
| GROSS TONGUE WEIGHT: | 800 LBS. |

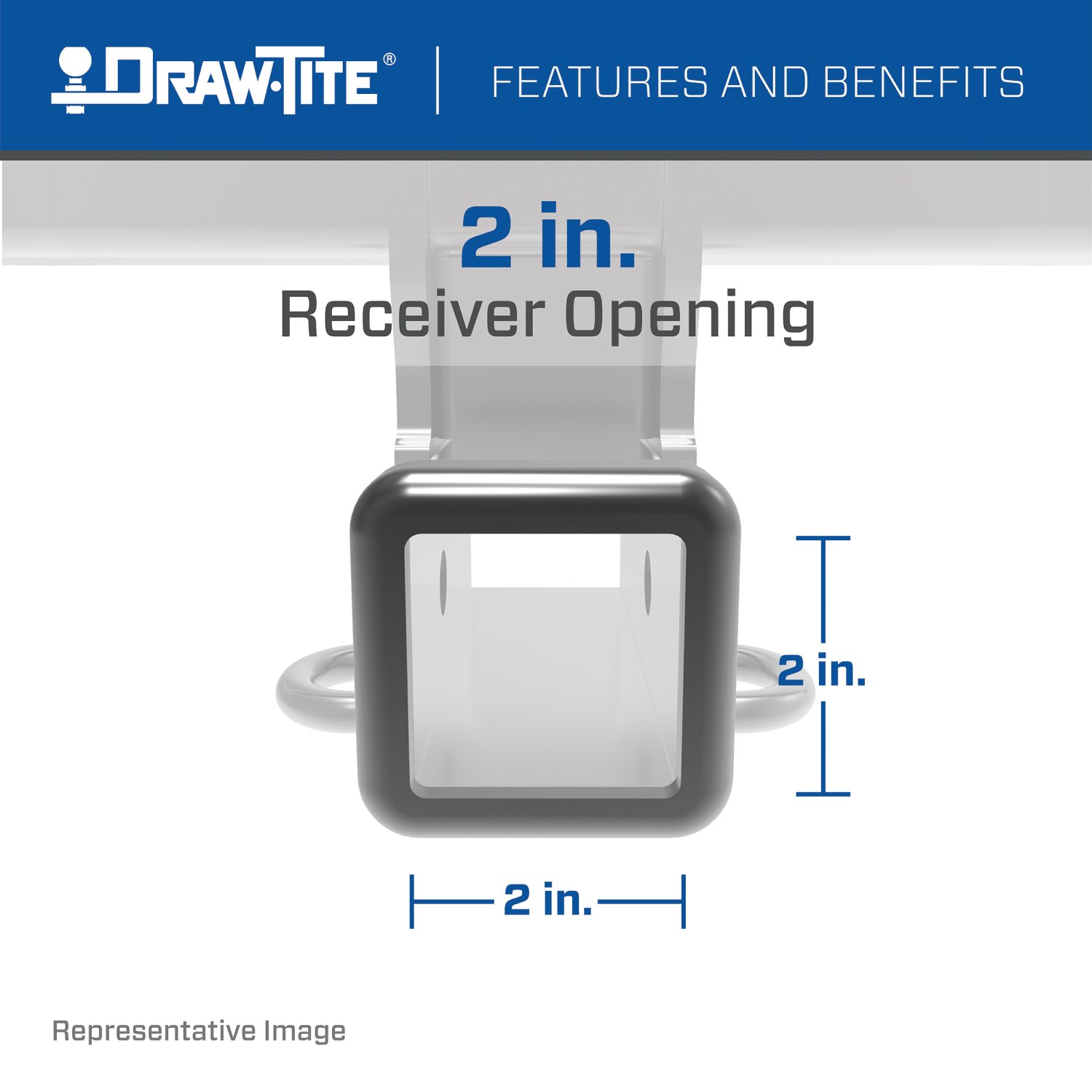

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 8,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 800 LBS. |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Toyota Hilux | Class 4 Trailer Hitch: 8000 lbs 800/8,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 800/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Hilux 75791 (Part #DT75791) fits the following vehicles: 2016-2023 Toyota Hilux. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Hilux 75791 (Part #DT75791) is designed to fit the 2016-2023 Toyota Hilux.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Hilux 75791 (Part #DT75791) fits 2016-2023 Toyota Hilux models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Hilux 75791 (Part #DT75791) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 75791 and 84791 are designed for 2016-current Toyota Hilux Tub models. For the most up-to-date information regarding specific application years and trim levels, visit the Cequent website at www.cequentgroup.com.
The maximum gross trailer weight is 8000 lb (3632 kg) and the maximum tongue weight is 800 lb (362 kg) for both weight-carrying and weight-distributing configurations. However, do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need a ratchet, torque wrench, safety glasses, 19 mm sockets, and a 6 inch socket extension. Always wear safety glasses when installing the hitch.
Yes. The installation process requires removing the rear bumper first by removing two M12 bolts on the bumper bracket from the frame rail on each side. The bumper is then reinstalled after the hitch is positioned.
All M12 fasteners must be tightened to 105 Lb.-Ft. (142 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Fastener kit 75791F includes: (8) M12 1.25x40 CL10.9 bolts, (8) 1/2 inch conical washers, and (4) round hole spacers measuring 0.250x1x1.5 inches. The conical washers must have their teeth side against the hitch.
No. During installation, M12 bolts and conical washers are inserted loosely through the hitch bracket and bumper mounting bracket holes. All fasteners are tightened together only in the final step to 105 Lb.-Ft. (142 N·M) using a torque wrench.
The spacer (part of kit 75791F) is installed inside the bumper mounting bracket during reinstallation. It helps position the bumper mounting bracket correctly so that the hitch bracket is sandwiched between the bumper mounting bracket and the vehicle frame.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Regular inspection is essential for safe towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
No. Do not cut access or attachment holes with a torch. Observe safety precautions when working beneath a vehicle and wear eye protection.
Yes. This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The 75791 is designed for 2016-current Toyota Hilux Tub models. Visit www.cequentgroup.com for the most current application information.
No drilling is required. The hitch uses existing frame weldnuts and the bumper mounting bracket holes. The installation involves removing the rear bumper, positioning the hitch, and reinstalling the bumper with a spacer.
The manual states that professional installation is recommended if you do not feel comfortable performing the installation on your own or are in need of assistance. Average installation time for professional installers is 35 minutes.
All M12 fasteners must be tightened to 105 Lb.-Ft. (142 N·M) using a torque wrench.
Maximum gross trailer weight is 8000 lb (3632 kg) and maximum tongue weight is 800 lb (362 kg), but do not exceed your vehicle manufacturer's rating.
Always wear your seatbelt, slow down when towing, never exceed posted speed limits, and load the trailer heavier in front. If excess sway occurs, take your foot off the gas and hold the steering wheel steady—do not brake or speed up.
