Draw-tite

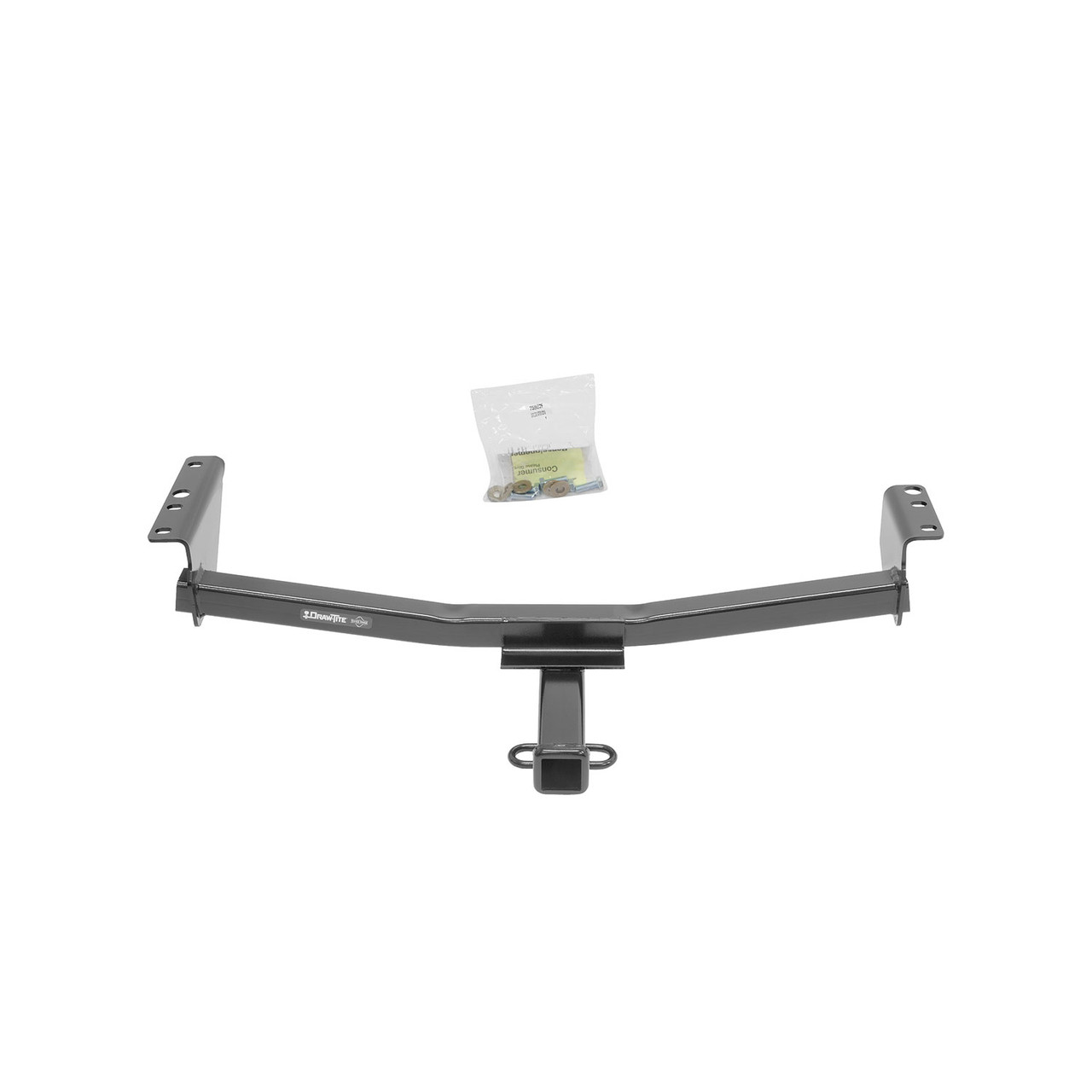

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75902 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 32 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |

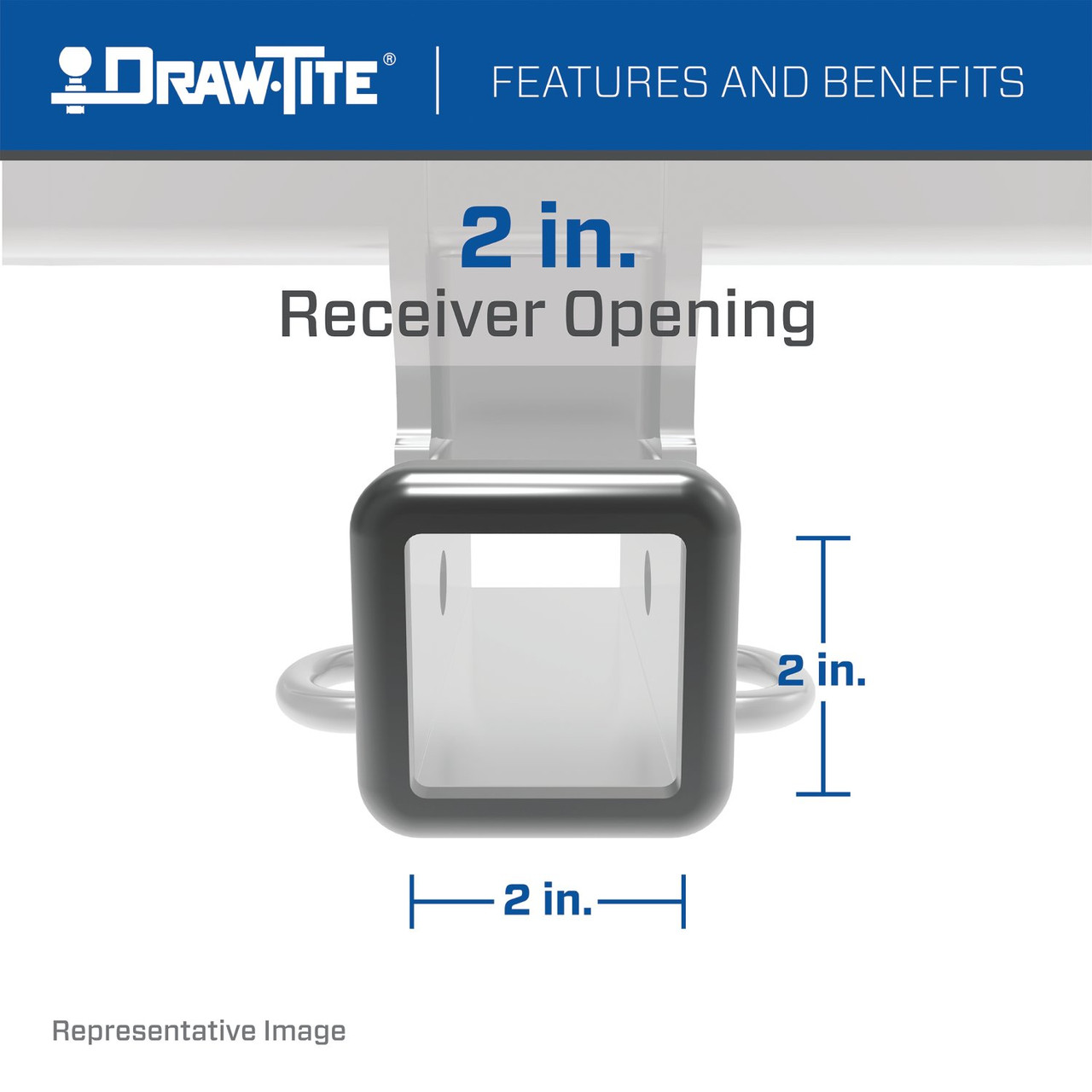

| RECEIVER SIZE: | 2 IN. |

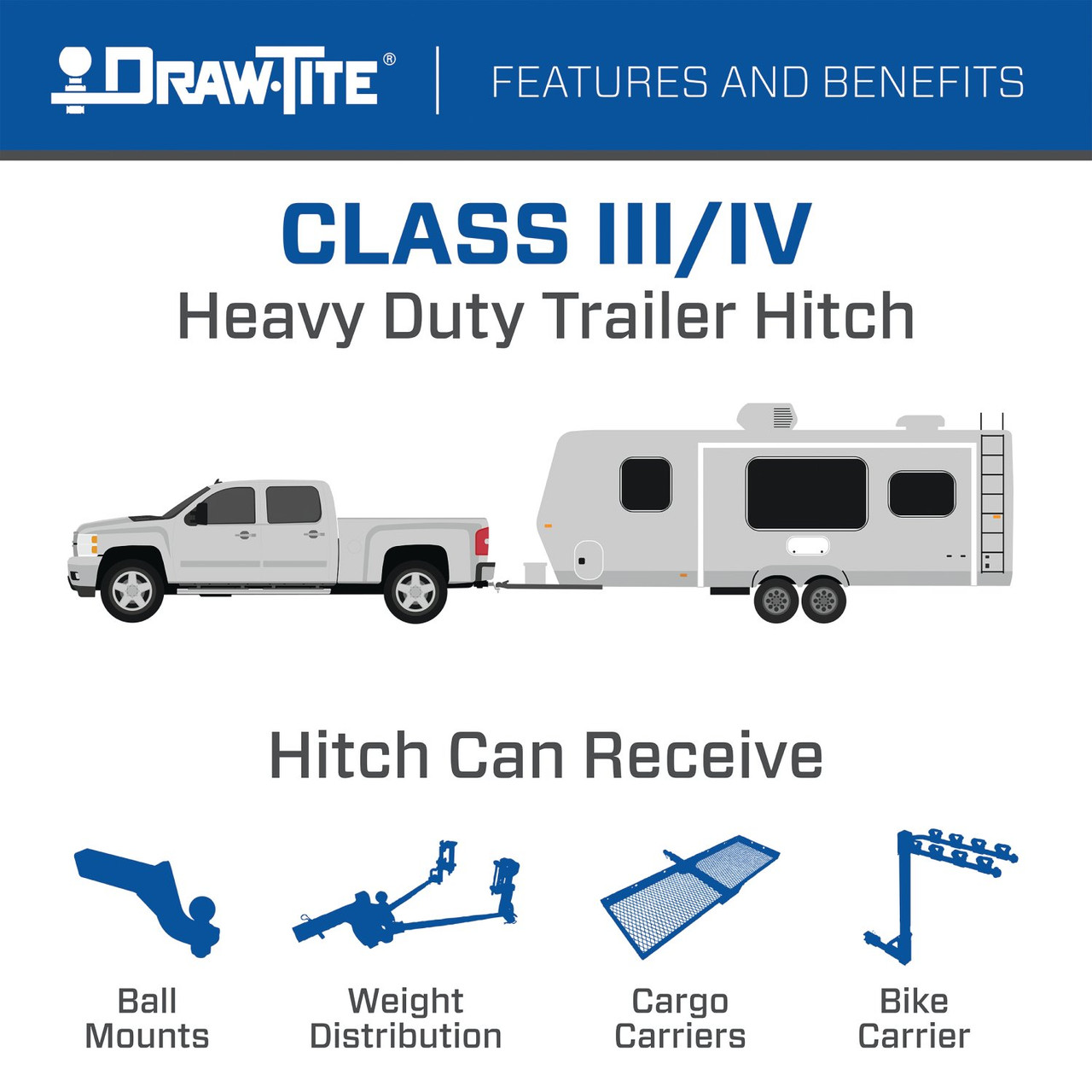

| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2020 | Nissan Rogue | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2014 - 2015 | Nissan Rogue Select | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 75902 (Part #DT75902) fits 2008-2020 Nissan Rogue models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 75902 (Part #DT75902) fits the following vehicles: 2008-2020 Nissan Rogue; 2014-2015 Nissan Rogue Select. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 75902 (Part #DT75902) is designed to fit the 2008-2020 Nissan Rogue.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Nissan Rogue, Nissan Rogue Select 75902 (Part #DT75902) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
This hitch (part numbers 75902, 87663, 44712) fits Nissan Rogue and Nissan Rogue Select models, except the Krōm trim. The manual does not specify model years, so contact the manufacturer or your dealer to confirm your specific year is covered.
No. The manual explicitly states this hitch is 'not to be used with spring bars.' You must use weight-carrying ball mount configuration only.
The hitch has a maximum gross trailer weight of 3500 lb (1590 kg) and maximum tongue weight of 350 lb (159 kg). However, you must not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating.
You need wrenches in 18mm and 19mm sizes and a torque wrench. No drilling is required. The fastener kit (75902F) is included with the hitch.
The hitch comes with 5 hex bolts M12 x 1.25 x 35mm CL8.8 and 5 conical washers ½" (part number 75902F). These fasteners attach the hitch to the vehicle frame at five mounting locations.
Yes. Step 1 requires you to remove and return the factory tow hook and its fasteners to the vehicle owner before installing the new hitch.
Only if your vehicle has appearance panels. The manual states: 'For vehicles with appearance panel: Remove plastic appearance panels which cover driver's and passenger's side frame rails.' If your vehicle has these panels, remove them, install the hitch, then return the panels and fasteners to the vehicle owner.
1. Remove and return the factory tow hook and fasteners. 2. Raise the hitch into position on the driver's side and loosely install the center fastener (hex bolt and conical washer through the elongated hole into the vehicle frame). 3. Raise the hitch into position on the passenger's side and loosely install the center fastener the same way. 4. Center the hitch on the vehicle. 5. Install the remaining hardware. 6. Tighten all fasteners to 75 Lb.-Ft. (102 N·M) with a torque wrench.
All M12 x 1.25 CL8.8 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Leave the center fasteners loose on both driver's and passenger's sides during initial positioning. Only after centering the hitch on the vehicle and installing all remaining hardware should you tighten all fasteners to 75 Lb.-Ft. (102 N·M) with a torque wrench.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe towing.
The elongated hole is a slot in the hitch that allows for adjustment and centering of the hitch on the vehicle frame. The hex bolt and conical washer pass through this elongated hole to attach the hitch to the vehicle frame.
No. The manual lists 'Drill Bits: None' under Equipment Required, confirming that no drilling is necessary for installation.
Maximum gross trailer weight is 3500 lb (1590 kg) and maximum tongue weight is 350 lb (159 kg). Do not exceed the lower of this rating or your vehicle manufacturer's rating.
Yes. Remove the factory tow hook and fasteners before installing this hitch, and return them to the vehicle owner.
