Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.

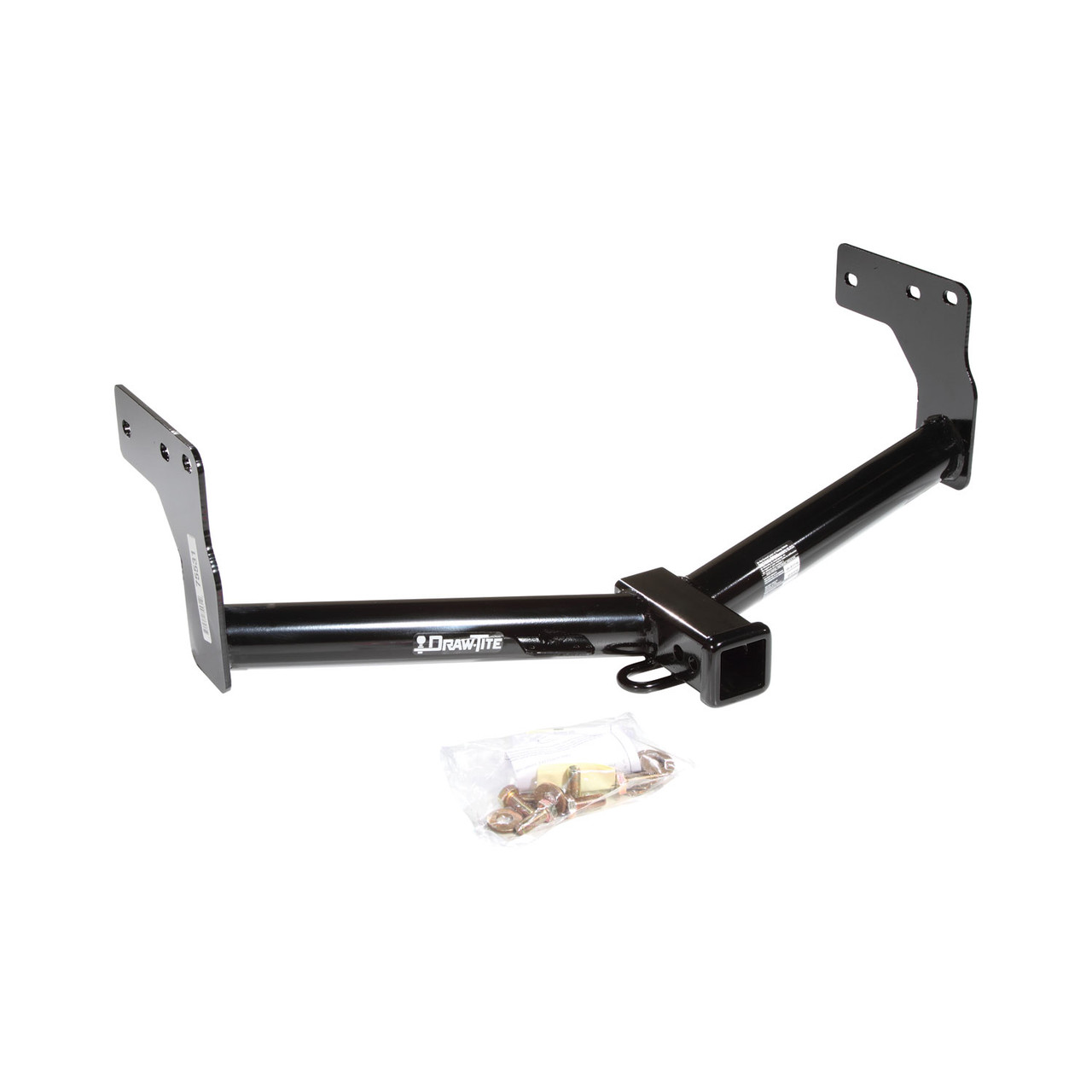

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75531 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27.3 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 400 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 400 LBS. |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2015 | Mazda CX-9 | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 75531 (Part #DT75531) fits 2007-2015 Mazda CX-9 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 75531 (Part #DT75531) fits the following vehicles: 2007-2015 Mazda CX-9. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 75531 (Part #DT75531) is designed to fit the 2007-2015 Mazda CX-9.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mazda CX-9 75531 (Part #DT75531) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75531 is designed for the Mazda CX-9. The hitch is installed between the frame rails, positioned above the muffler and heat shield. The receiver tube points downward during installation.
The maximum gross trailer weight is 4000 lb (1816 kg) and the maximum tongue weight is 400 lb (182 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating. Check your Mazda CX-9 owner's manual for the vehicle's specific towing capacity.
Fastener Kit 75531F includes 6 hex bolts M12 × 1.25 × 25 CL 8.8 and 6 conical washers. These fasteners attach the hitch to the existing weld nuts on the frame rails.
You will need a 19 mm wrench and a torque wrench. No drill bits are required, as no drilling is necessary for this installation.
No, drilling is not required. The hitch fastens to existing weld nuts on the frame rails using the bolts and conical washers provided in Fastener Kit 75531F.
Raise the hitch into position between the frame rails with the receiver tube pointing downward. Rotate it into position above the muffler and heat shield. The hitch may touch the heat shield during this process. Once positioned, push the hitch rearward and tighten all fasteners.
Tighten all M12 CL 8.8 fasteners with a torque wrench to 76 lb.-ft. (105 N·m).
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely positioned and that no fasteners have loosened.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to ensure safe operation.
The hitch is positioned above the muffler and heat shield. The hitch may touch the heat shield during installation, but this is normal. Once properly positioned and tightened, the hitch should not interfere with normal operation.
Yes, the fasteners are typical on both sides. The same M12 × 1.25 × 25 CL 8.8 hex bolts and conical washers are used symmetrically on the left and right frame rails.
Yes. The hitch installs between the frame rails above the muffler and heat shield. No drilling is required.
Maximum 4000 lb (1816 kg) gross trailer weight and 400 lb (182 kg) tongue weight, but do not exceed your vehicle manufacturer's rating.
A 19 mm wrench and a torque wrench. No drilling is required.
Tighten all M12 CL 8.8 bolts to 76 lb.-ft. (105 N·m) with a torque wrench.
Raise the hitch between the frame rails with the receiver tube pointing down, rotate it above the muffler and heat shield, push it rearward, and tighten all fasteners to 76 lb.-ft. (105 N·m).
Wear eye protection, work safely beneath the vehicle, do not use a torch to cut holes, and plug any holes if the hitch is removed to prevent water and exhaust fume entry.
