Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.

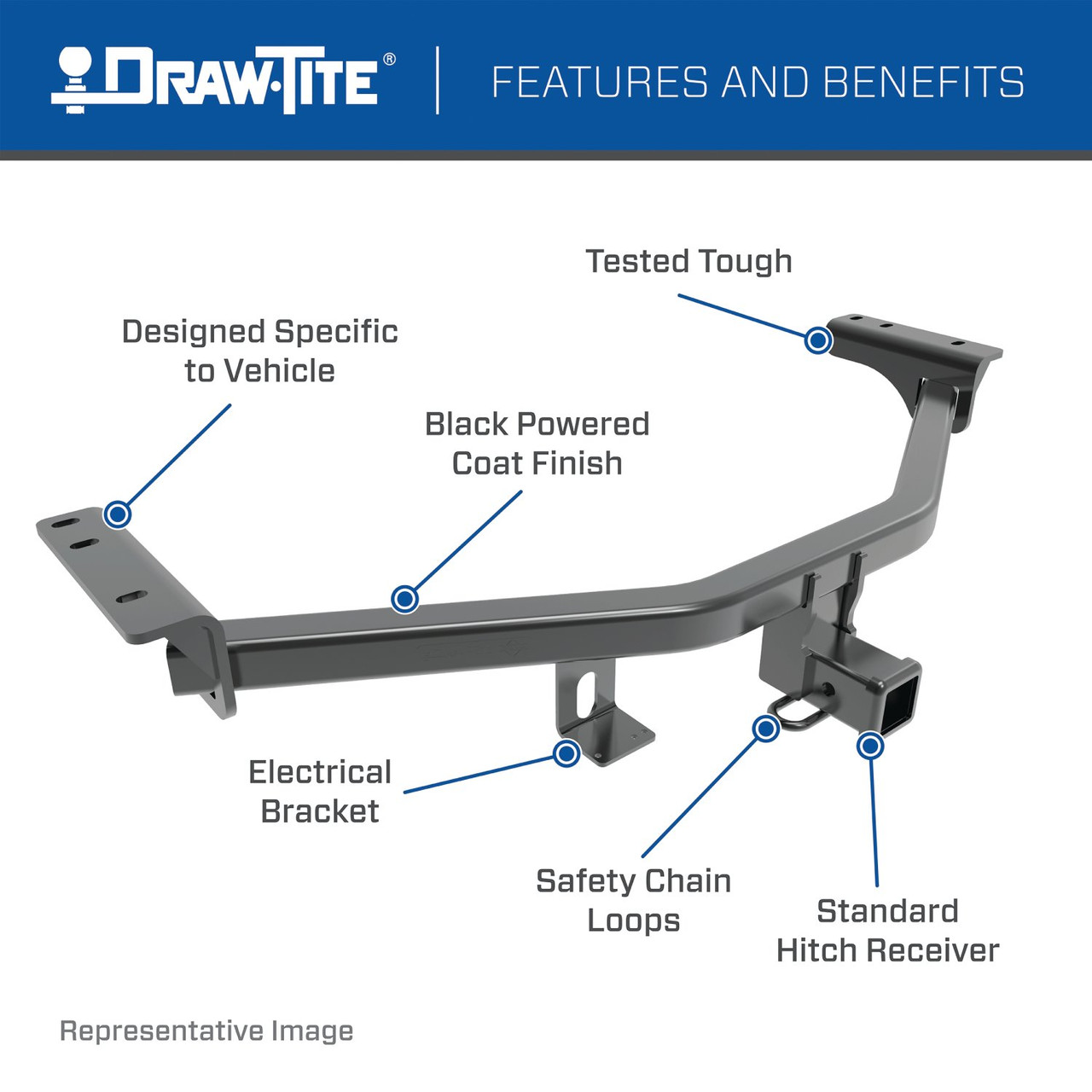

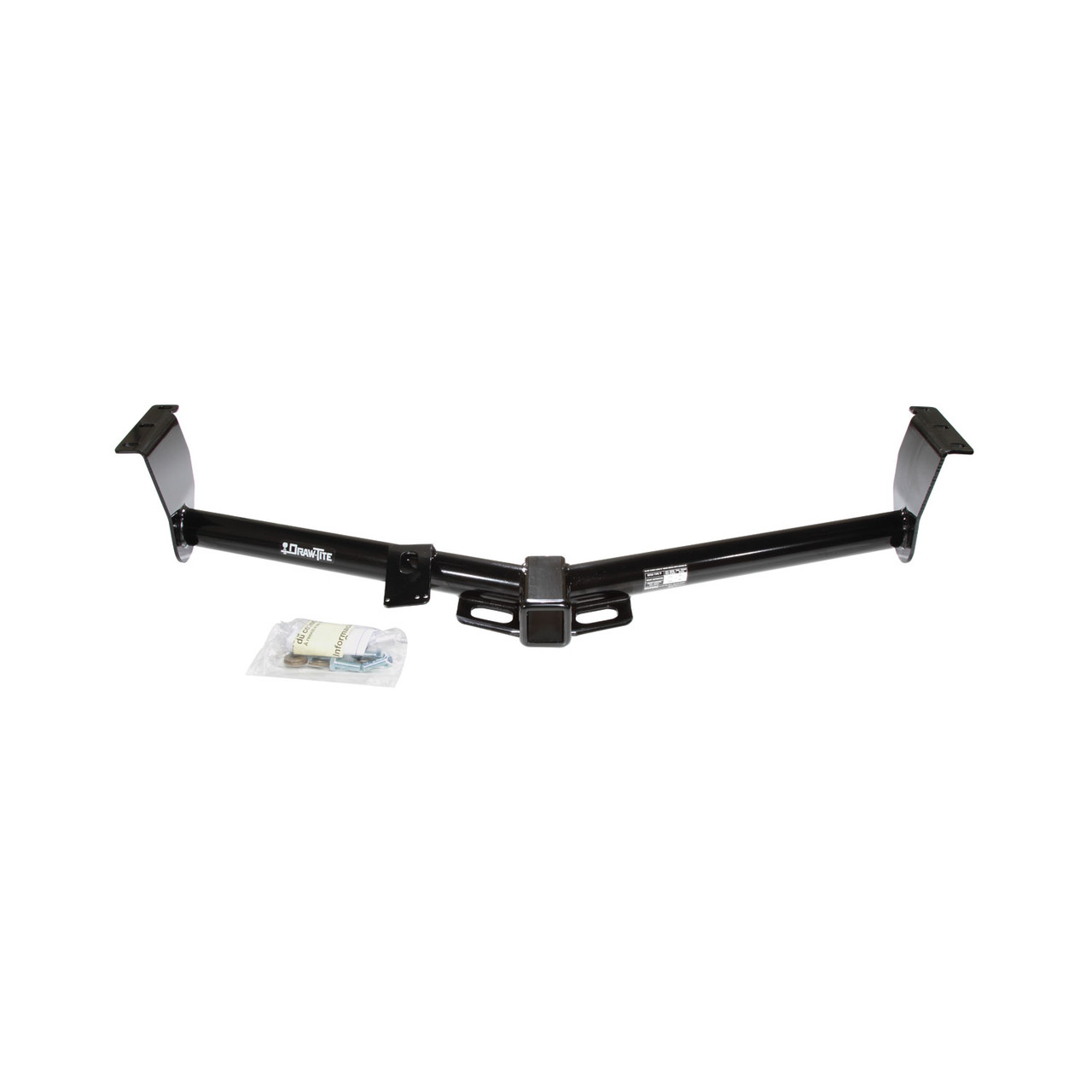

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75421 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 400 LBS. |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2009 | Hyundai Entourage | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2006 - 2012, 2014 | Kia Sedona | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Entourage, KIA Sedona 75421 (Part #DT75421) fits the following vehicles: 2007-2009 Hyundai Entourage; Kia Sedona. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Entourage, KIA Sedona 75421 (Part #DT75421) fits 2007-2009 Hyundai Entourage models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Entourage, KIA Sedona 75421 (Part #DT75421) is designed to fit the 2007-2009 Hyundai Entourage.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Hyundai Entourage, KIA Sedona 75421 (Part #DT75421) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75421 fits Kia Sedona Van models from 2005, 2006, and 2011. The hitch is also compatible with Hyundai Entourage from the same model years. If your Sedona is a different year, consult the manufacturer or a fitment database to confirm compatibility.
Yes, part number 75421 fits Hyundai Entourage models from 2005, 2006, and 2011. The hitch is also compatible with Kia Sedona Van from the same model years. If your Entourage is a different year, consult the manufacturer or a fitment database to confirm compatibility.
The maximum towing capacity depends on the hitch type and your vehicle's manufacturer rating. For a Weight Distributing hitch, the maximum gross trailer weight is 4000 lb (1816 kg) with a maximum tongue weight of 400 lb (182 kg). For a Weight Carrying Ball Mount, the maximum gross trailer weight is 3500 lb (1589 kg) with a maximum tongue weight of 350 lb (159 kg). You must not exceed the lower of your towing vehicle manufacturer's rating or the hitch type rating.
The fastener kit 75421F includes 6 hex bolts M12 × 1.25 and 6 conical washers. These fasteners attach the hitch to the existing weld nuts on the vehicle frame rail. The kit is required for installation.
You need a 19 mm wrench and a torque wrench. No drill bits are required because no drilling is necessary for this installation. The hitch bolts to existing weld nuts on the vehicle frame rail.
Yes. You must remove the exhaust from its hangers to gain better access to the frame fastener location. This is the first step of installation. After the hitch is secured and tightened, you reattach the exhaust hangers.
1. Remove the exhaust from its hangers for access. 2. Raise the hitch on the passenger side over the exhaust pipe and slowly rotate it into position. 3. Loosely install all bolts to secure the hitch. 4. Push the hitch forward against the installed bolts. 5. Tighten all M12 fasteners with a torque wrench to 76 Lb.-Ft. (103 N·M). 6. Reattach the exhaust hangers.
All M12 fasteners must be tightened to 76 Lb.-Ft. (103 N·M) using a torque wrench. This torque must be applied after the hitch is pushed forward against the installed bolts and all bolts are loosely installed.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. This is especially important after initial installation and before each towing use. Verify that all M12 bolts remain at the specified torque of 76 Lb.-Ft. (103 N·M).
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection before towing is recommended to ensure safety and prevent loosening of fasteners.
No. The 75421 hitch does not require drilling. It bolts to existing weld nuts on the vehicle frame rail using the six M12 × 1.25 hex bolts and conical washers included in the fastener kit 75421F.
The wiring access location is SUV1 & SUV2. However, the manual does not provide detailed wiring installation instructions or diagrams. Consult the manufacturer or a detailed wiring guide for specific wiring procedures.
Yes, the 75421 fits Kia Sedona Van and Hyundai Entourage models from 2005, 2006, and 2011. Confirm your model year matches before purchasing.
You need a 19 mm wrench, a torque wrench, and the fastener kit 75421F (6 hex bolts M12 × 1.25 and 6 conical washers). No drilling is required.
Yes, remove the exhaust from its hangers for access to the frame fasteners. Reattach the hangers after tightening the hitch bolts.
Tighten all M12 fasteners to 76 Lb.-Ft. (103 N·M) using a torque wrench after pushing the hitch forward against the bolts.
Maximum gross trailer weight is 4000 lb (1816 kg) for Weight Distributing or 3500 lb (1589 kg) for Weight Carrying Ball Mount. Do not exceed the lower of your vehicle manufacturer's rating or the hitch rating.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify bolts remain at 76 Lb.-Ft. (103 N·M) torque before each towing use.
