CURT
Verify Fitment
Select your vehicle to confirm this part fits.










Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
Includes strong, grade-8 installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 2-1/2 IN
Color: Black
WC / TW (Pounds): 2,700 LB / 20,000 LB
WD / WDTW (Pounds): 20,000 LB / 2,700 LB
Weight Carrying Capacity (Pounds): 20,000 LB
WC Tongue Weight (Pounds): 2,700 LB
Weight Distribution (Pounds): 20,000 LB
WD Tongue Weight (Pounds): 2,700 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

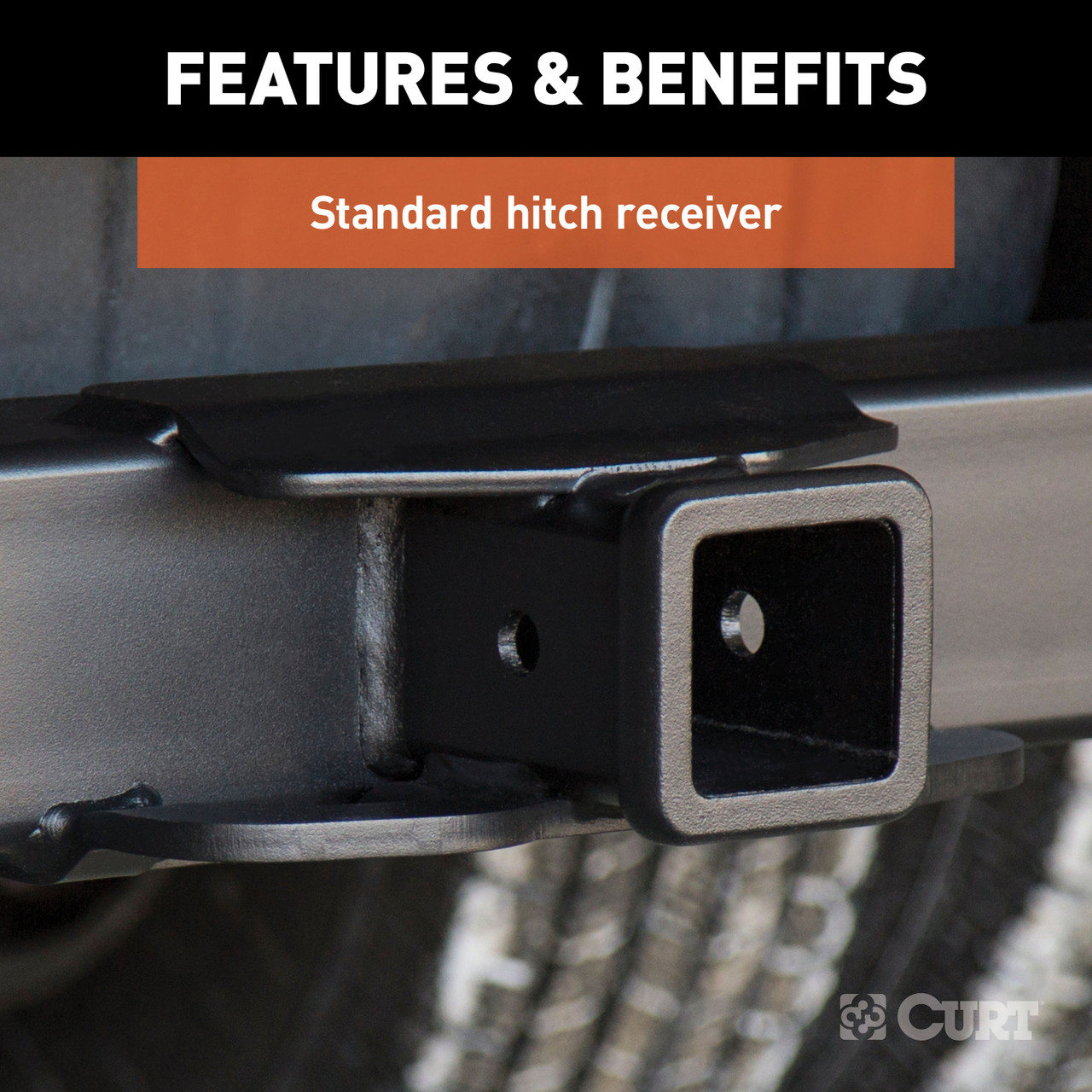

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Ram 3500 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2017 | Ram 2500 | — | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2014 - 2017 | Ram 3500 | Crew Cab Pickup | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2014 - 2017 | Ram 3500 | Extended Crew Cab Pickup | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2014 - 2017 | Ram 3500 | Standard Cab Pickup | No Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 3500 Trailer Hitch (Part #BKDK15803) fits the following vehicles: 2014-2017 Ram 2500; 2014-2017 Ram 3500. Always verify your specific year, make, and model before ordering.
Yes, the CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 3500 Trailer Hitch (Part #BKDK15803) is designed to fit the 2014-2017 Ram 2500.
The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 3500 Trailer Hitch (Part #BKDK15803) fits 2014-2017 Ram 2500 models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Commercial Duty Class 5 Trailer Hitch, 2-1/2" Receiver, Select Ram 3500 Trailer Hitch (Part #BKDK15803) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part 15803 is designed for RAM 3500 SHORT AND LONG BOX. However, the installation differs by bed length: long bed vehicles use the frontmost hole on the hitch side plates, while short bed vehicles use the middle hole. This applies to both the forward and rear attachment points in the frame rails.
If equipped with a factory hitch, you may need to loosen the hitch/bumper beam and push it towards the rear of the vehicle to create additional space for the CURT hitch. The manual does not specify whether the factory hitch must be fully removed or only repositioned.
The hitch weight specification is not provided in the manual.
The manual lists gross load capacity specifications for both weight-carrying and weight-distribution modes, but the specific values are blank in the document. The manual emphasizes: DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY. Contact CURT Technical Support at 1-877-287-8634 for capacity specifications.
The following tools are required: socket wrench, torque wrench, 8 inch socket extension, 13/16" socket, and 7/8" socket.
The kit includes: 2× HHCS 9/16-12 UNC Grade 8 bolts (part 10-10500), 2× 9/16" fishwire carriage bolts, 2× 9/16" flat washers (part 30-00202), 6× 9/16" serrated flange nuts Grade 8 (part 20-00104), 4× 9/16-12 UNC 1-3/4" carriage bolts Grade 8 (part 10-10328), 4× .313 x 1.50 x 3.00" 9/16" square hole spacers (part CM-SP74), and 6× .188 x 1.25 x 1.50" round hole spacers (part CM-SP8).
No, drilling is not required. The hitch uses existing holes in the RAM 3500 frame rails.
1. Raise hitch into position by aligning holes in hitch side plates with holes in frame rails (long bed uses frontmost hole, short bed uses middle hole). 2. Fishwire 9/16" carriage bolts and CM-SP74 spacers through the cross tube ends and large holes in frame rails at both forward and rear attachment points. 3. Secure with 9/16" hex flange nuts. 4. Install 9/16" hex bolts and flat washers through hitch side plates and tow loops. 5. Install CM-SP8 spacers between tow loops and hitch side plates to prevent pulling. 6. Torque carriage bolts to 150 lb-ft. 7. Secure hex bolts with CM-SP8 spacers and 9/16" hex flange nuts. 8. Torque remaining 9/16" hardware to 150 lb-ft.
All 9/16" hardware should be torqued to 150 lb-ft. This includes both the carriage bolts (Step 6) and the remaining 9/16" hardware (Step 8).
Fishwire carriage bolts are flexible bolts included in the kit (2× 9/16" fishwire). They are threaded through the ends of the cross tube and the large holes in the frame rails at both forward and rear attachment points, along with CM-SP74 spacers. The fishwire technique allows the bolts to be inserted and positioned before being secured with hex flange nuts.
CM-SP74 spacers (.313 x 1.50 x 3.00" with 9/16" square hole) are used with the fishwire carriage bolts through the cross tube and frame rail holes (4 required). CM-SP8 spacers (.188 x 1.25 x 1.50" with round hole) are installed between the tow loops and hitch side plates to prevent the tow loops from pulling into the hitch when hex bolts are tightened (6 required, use as needed).
Hole alignment depends on vehicle bed length. Long bed RAM 3500 vehicles use the frontmost hole on the hitch side plates. Short bed RAM 3500 vehicles use the middle hole. This applies to both the forward and rear attachment points in the frame rails.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a maintenance interval, so regular visual inspection and fastener checks are recommended.
Do not exceed your vehicle manufacturer's recommended towing capacity. The CURT 15803 manual lists gross load capacity specifications for weight-carrying and weight-distribution modes, but the specific values are blank. Contact CURT Technical Support at 1-877-287-8634 or consult your RAM 3500 owner's manual for the vehicle's maximum towing capacity.
Yes, the CURT 15803 is designed for RAM 3500 short and long box models. Installation uses different frame rail holes depending on bed length: frontmost hole for long bed, middle hole for short bed.
No drilling is required. The hitch uses existing frame rail holes on the RAM 3500.
You need a socket wrench, torque wrench, 8 inch socket extension, 13/16" socket, and 7/8" socket.
All 9/16" hardware should be torqued to 150 lb-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. Specific capacity values are not provided in the manual; contact CURT Technical Support at 1-877-287-8634.
Periodically check that all fasteners are tight and structural components are sound.
