CURT
GTW












Trailer ball and hitch pin sold separately
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Color: Black
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 1,200 LB
WC Tongue Weight (Pounds): 1,200 LB
Gross Trailer Weight (Pounds): 12,000 LB
Installation Time Exact (Minutes): 0

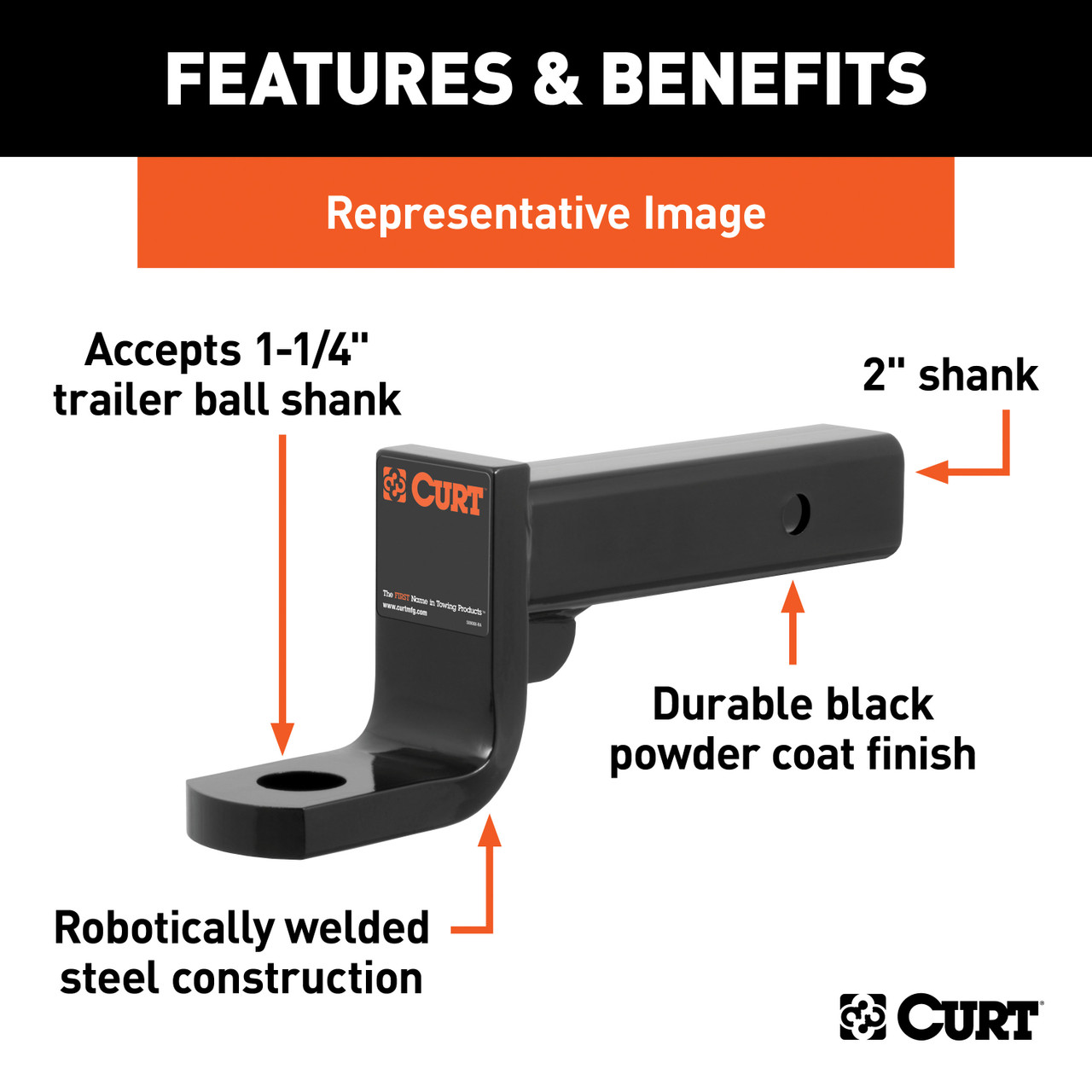

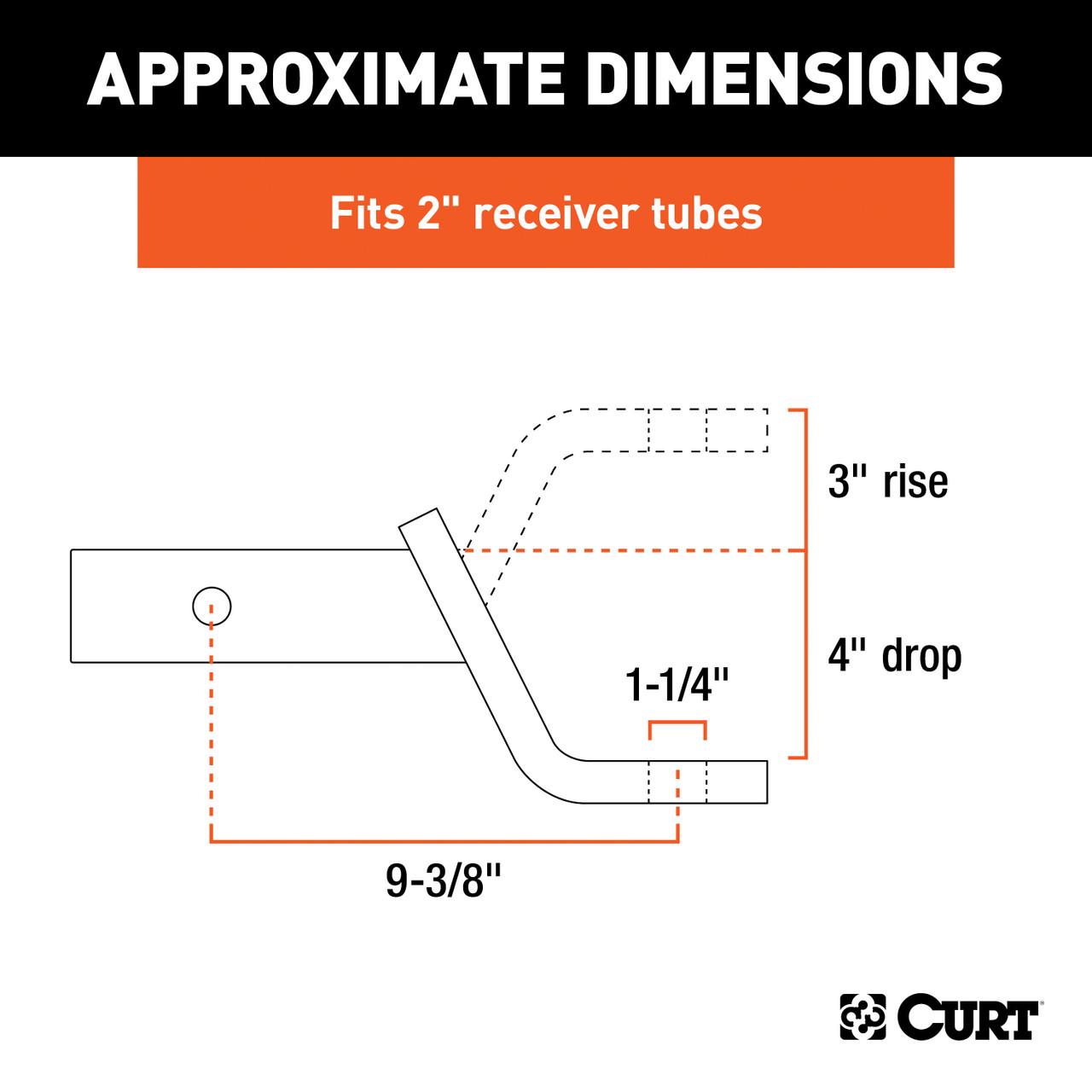

When you demand more from your towing equipment, CURT class 4 ball mounts answer the call. Our heavy-duty ball mounts are constructed from quality steel and feature a 2" x 2" shank. They are built to complement CURT class 4 trailer hitches and are perfect for towing large boat trailers, RVs, livestock and horse trailers as well as a variety of other farm and industrial-type trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a few different drop height options and the ability to flip for optional rise, CURT class 4 ball mounts are built to work as hard as you do, from sunup to sundown. This class 4 ball mount has a gross trailer weight capacity of 12,000 lbs. and tongue weight rating of 1,200 lbs. It has a standard drop of 4" or can be flipped to provide 3" of rise. It also features a solid shank for maximum strength. As with most of our ball mount line, CURT class 4 ball mounts are CNC-formed, robotically welded and mechanically descaled to create a flawless product. We finish our heavy-duty ball mounts in a gloss black powder coat to give them superior rust, chip and UV resistance. They also come with 1-1/4" ball hole to accept a trailer ball with a 1-1/4" shank.

CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
Order by 2 PM ET, Monday–Friday, and it ships the same day.
| Part # | GTW / TW | Drop | Rise | Length | Tongue Hole Size | Shank Type | Finish |
|---|---|---|---|---|---|---|---|
| 45310 | 10,000 / 1,000 lbs. | 2" | 1" | 9-3/8" | 1-1/4" | Hollow | Gloss black |
| 45311 | 10,000 / 1,000 lbs. | 4" | 2-3/4" | 9-3/8" | 1-1/4" | Hollow | Gloss black |
| 45336 | 10,000 / 1,000 lbs. | 6" | 4-3/4" | 9-3/8" | 1-1/4" | Hollow | Gloss black |
| 45338 | 10,000 / 1,000 lbs. | 8" | 6-3/4" | 9-3/8" | 1-1/4" | Hollow | Gloss black |
| 45312 | 12,000 / 1,200 lbs. | 2" | 1" | 9-3/8" | 1-1/4" | Solid | Gloss black |
| 45313 | 12,000 / 1,200 lbs. | 4" | 3" | 9-3/8" | 1-1/4" | Solid | Gloss black |
| 45446 | 12,000 / 1,200 lbs. | 6" | 5" | 9-3/8" | 1-1/4" | Solid | Gloss black |
| 45448 | 12,000 / 1,200 lbs. | 8" | 7" | 9-3/8" | 1-1/4" | Solid | Gloss black |
