CURT
Verify Fitment
Select your vehicle to confirm this part fits.












Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes installation hardware (comes with boxed, bolt-on arms)
Available from Eau Claire, WI distribution center only
Includes installation hardware (comes with boxed, bolt-on arms)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square

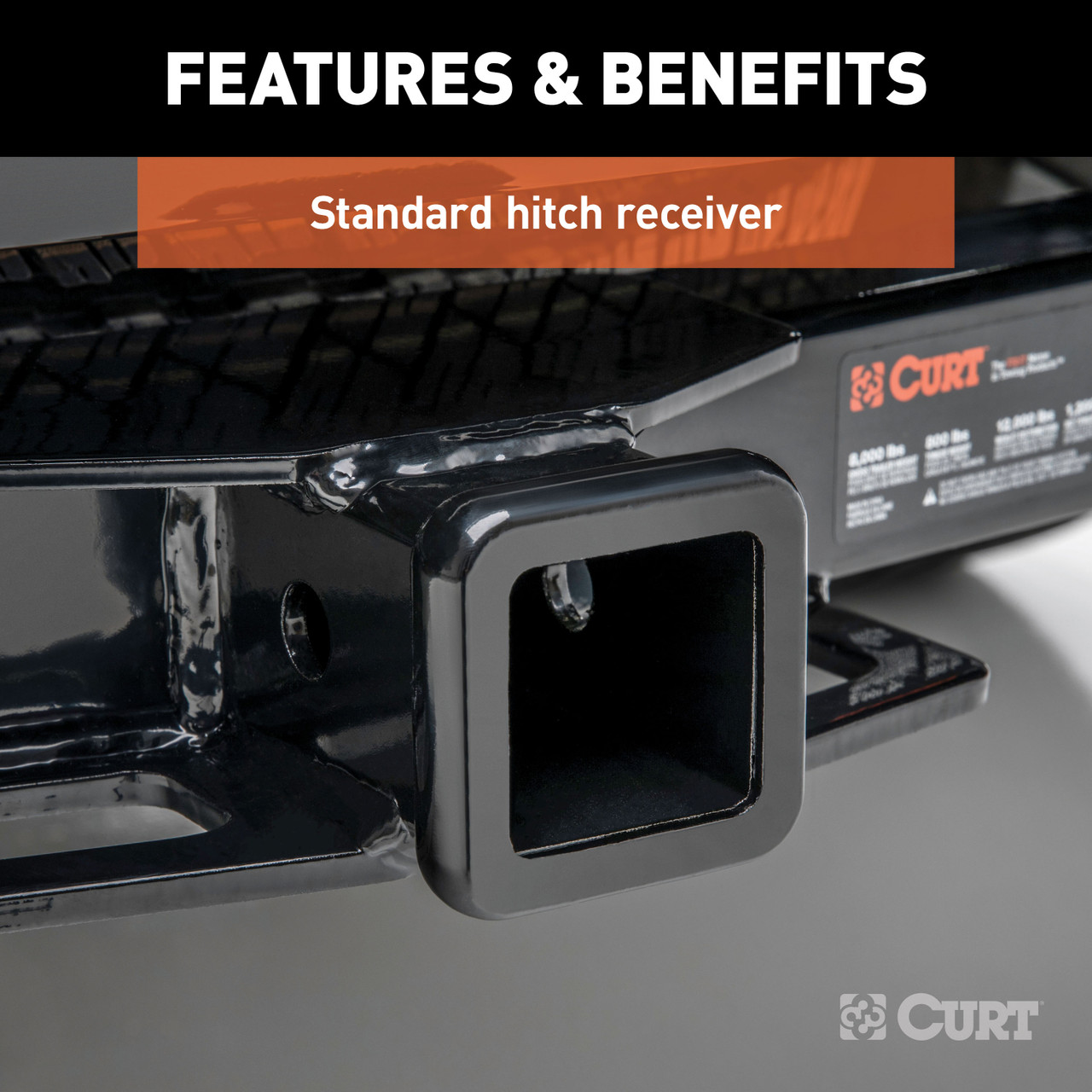

Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 400 LB / 4,000 LB
Weight Carrying Capacity (Pounds): 4,000 LB
WC Tongue Weight (Pounds): 400 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

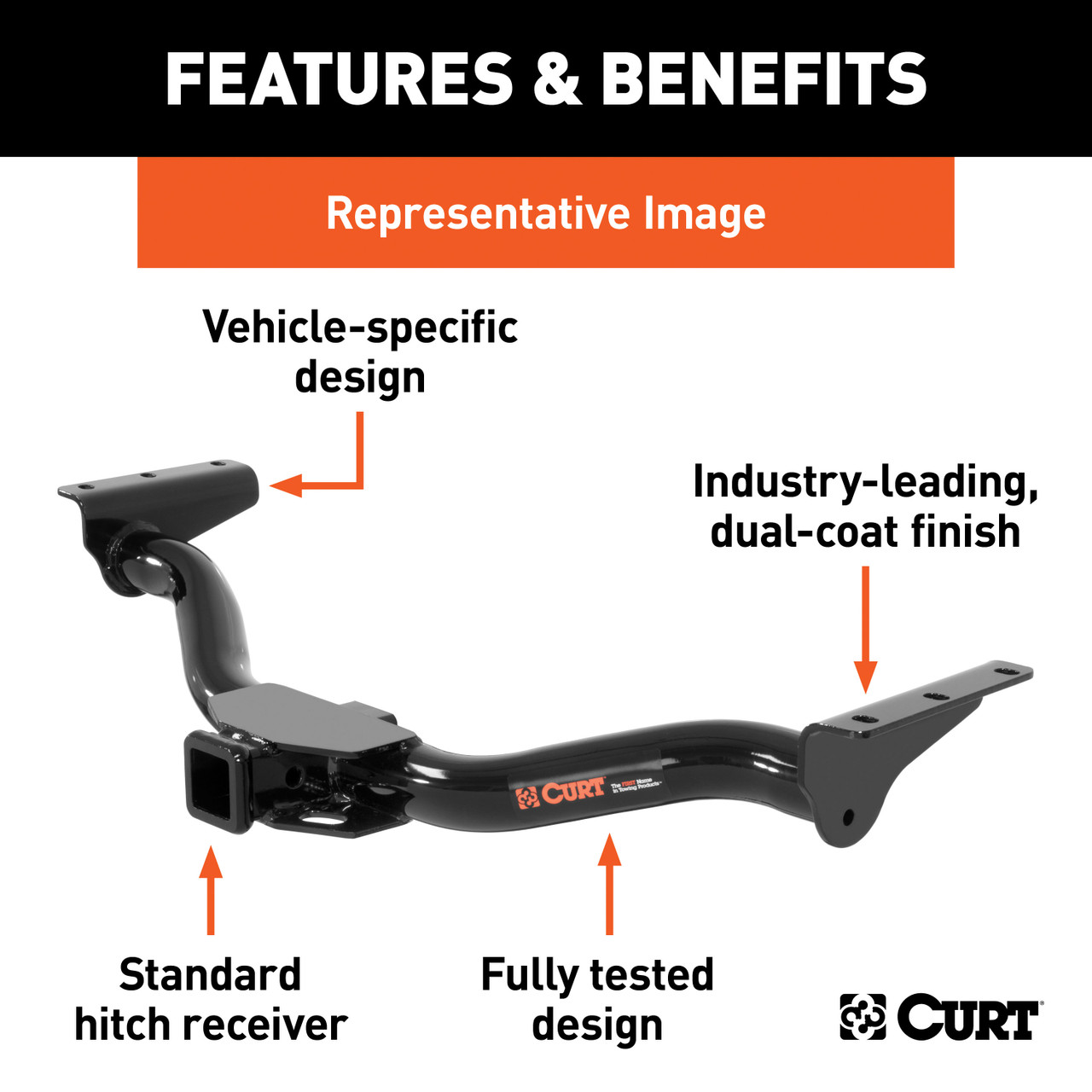

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep CJ5 and CJ7 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Jeep CJ5, CJ7 Trailer Hitch (Part #BKDK13412) fits 1978-1983 Jeep CJ5 models. The 1986 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Class 3 Trailer Hitch, 2" Receiver, Select Jeep CJ5, CJ7 Trailer Hitch (Part #BKDK13412) is designed to fit the 1978-1983 Jeep CJ5.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Jeep CJ5, CJ7 Trailer Hitch (Part #BKDK13412) fits the following vehicles: 1978-1983 Jeep CJ5; 1978-1986 Jeep CJ7. Always verify your specific year, make, and model before ordering.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Jeep CJ5, CJ7 Trailer Hitch (Part #BKDK13412) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Curt part number 13412 is designed for 1978–1996 Jeep CJ5 and CJ7 models only. If you have a different Jeep model or year, this hitch will not fit.
The Curt 13412 has a gross load capacity of 4,000 lbs trailer weight and 400 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Yes, drilling is required. A 1/2" hole must be drilled in the frame on each side of the vehicle to accommodate the 7/16 x 3 3/4" bolt and part number CM-13412-WNP1. Use the hole in the side arm as a template for accurate placement.
The manual does not specify which tools are required. You will need a drill with a 1/2" bit for the frame holes, and a torque wrench to tighten fasteners to the specified values (70 lb.-ft for 7/16" fasteners, 110 lb.-ft for 1/2" fasteners, and 50 lb.-ft for 5/8" fasteners). Contact Curt Manufacturing or your installer for a complete tool list.
The manual does not explicitly state whether bumper removal is required. However, step 1 notes that a 7/16 x 2" bolt should be used "when using special aftermarket bumper," suggesting bumper configuration may affect installation. Consult your installer or Curt Manufacturing for your specific vehicle setup.
Torque 7/16" fasteners to 70 lb.-ft. Torque 1/2" fasteners to 110 lb.-ft. Torque 5/8" fasteners to 50 lb.-ft. These values apply to all fasteners of each size throughout the installation.
1. Raise the hitch into position against the rear crossmember. 2. Start a 7/16 x 1 1/2" bolt and part number CM-13412-WNP2 into the inside holes on each side of the center section (use 7/16 x 2" bolt if using special aftermarket bumper). 3. Slide driver and passenger side arms into the hitch body and install hardware as shown. 4. Drill a 1/2" hole in the frame on each side using the side arm hole as a template. 5. Install the 7/16 x 3 3/4" bolt and part number CM-13412-WNP1. 6. Torque all fasteners to specification.
The kit includes: 4× 1/2" flat washers, 2× 1/2-13 nylon lock nuts, 2× 1/2-13 hex cap screws (4 1/2" long), 2× hex bolts, 8× 7/16-14 hex cap screws (1 1/2" long), 4× 7/16-14 hex cap screws (2" long), 22× 7/16" flat washers, 8× 7/16-14 nylon lock nuts, 6× hex bolts, 4× 1/2" wedge spacers, 2× 0.250 x 1.50 x 1.50" round hole spacers, 2× 0.250" support brackets, 2× weld nut plates (CM-13412-WNP1), and 2× weld nut plates (CM-13412-WNP2).
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval or detailed maintenance schedule. Contact Curt Manufacturing for recommended maintenance intervals.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
The Curt 13412 fits 1978–1996 Jeep CJ5 and CJ7 models only.
Yes. A 1/2" hole must be drilled in the frame on each side to accommodate the 7/16 x 3 3/4" bolt and weld nut plate CM-13412-WNP1.
Torque 7/16" fasteners to 70 lb.-ft, 1/2" fasteners to 110 lb.-ft, and 5/8" fasteners to 50 lb.-ft.
The hitch is rated for 4,000 lbs trailer weight and 400 lbs tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound. No specific retorque interval is provided in the manual.
