CURT
Verify Fitment
Select your vehicle to confirm this part fits.










Order by 2 PM ET, Monday–Friday, and it ships the same day.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes installation hardware
Includes installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Round
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 750 LB / 5,000 LB
WD / WDTW (Pounds): 6,000 LB / 750 LB
Weight Carrying Capacity (Pounds): 5,000 LB
WC Tongue Weight (Pounds): 750 LB
Weight Distribution (Pounds): 6,000 LB
WD Tongue Weight (Pounds): 750 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

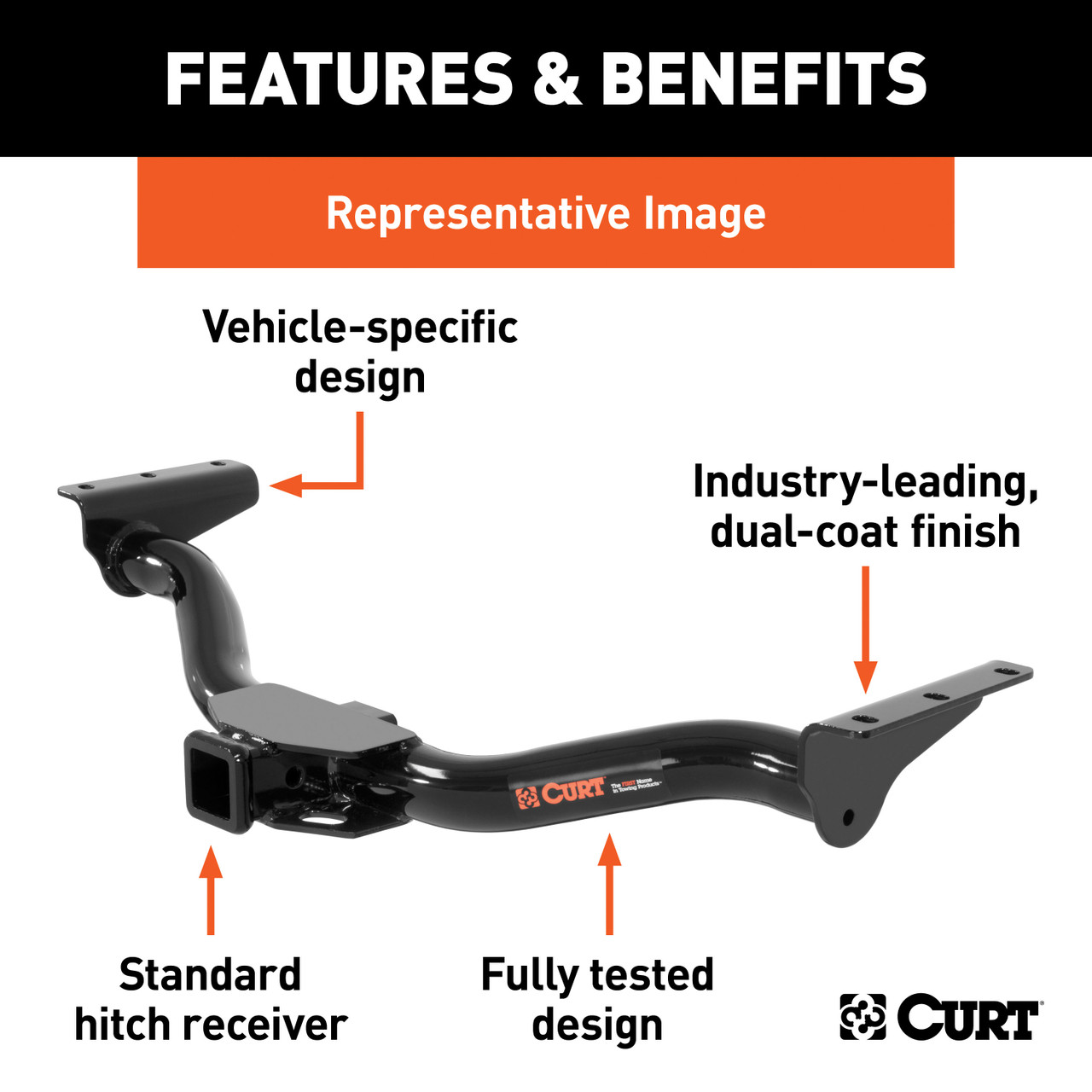

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Palisade (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Hyundai Palisade | No Drilling Required Installation Time: 30-60 minutes Visibility: Concealed |
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Palisade Trailer Hitch (Part #BKDK13427) fits 2020-2025 Hyundai Palisade models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Palisade Trailer Hitch (Part #BKDK13427) fits the following vehicles: 2020-2025 Hyundai Palisade. Always verify your specific year, make, and model before ordering.
Yes, the CURT Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Palisade Trailer Hitch (Part #BKDK13427) is designed to fit the 2020-2025 Hyundai Palisade.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Hyundai Palisade Trailer Hitch (Part #BKDK13427) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part 13427 is designed for 2020-present Hyundai Palisade SUVs. Verify your vehicle matches this model and year range before purchasing.
The CURT 13427 has two capacity ratings depending on how it is used. As a weight-carrying hitch: 5,000 lbs trailer weight and 750 lbs tongue weight. As a weight-distribution hitch: 6,000 lbs trailer weight and 750 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 45 lbs.
Required tools are: ratchet, torque wrench, 6-inch socket extension, 11mm socket, 14mm socket, 17mm socket, 19mm socket, straight screwdriver, and 19mm boxed-end wrench. Safety glasses must be worn at all times during installation.
No, drilling is not required. The hitch uses existing vehicle weldnuts and tube spacers in the frame.
Two people may be required to ease installation, though the manual does not state whether a second person is mandatory or optional.
Three components must be temporarily removed or lowered: (1) the spare tire, lowered using an 11mm socket and ratchet; (2) the driver-side underbody panel, removed by taking out 3 push clips and turning 2 plastic retainers counterclockwise with a 14mm socket; and (3) the exhaust, lowered by unhoking the 4 rearward-most exhaust isolators. The exhaust must be supported while lowered.
The hitch includes: (1) four M10×1.25 hex cap screws (part 10-10271); (2) four M12×1.75 hex cap screws (part 10-10283); (3) four M12×1.75 hex nuts (part 20-00136); (4) eight 1/2-inch S-CON washers (part 30-00149); and (5) four 7/16-inch S-CON washers (part 30-00163). The M10 fasteners and 7/16-inch washers install into existing vehicle weldnuts on the driver and passenger frame rails. The M12 fasteners, hex nuts, and 1/2-inch washers also attach to the frame rails using existing tube spacers.
Torque all M12 fasteners (12mm) to 79 lb-ft and all M10 fasteners (10mm) to 48 lb-ft. Use a torque wrench to achieve these values.
No. Step 4 instructs to 'loosely install fasteners' when raising the hitch into position. Fasteners are fully torqued in step 5 after the hitch is positioned over the exhaust.
After torquing all fasteners, reinstall in this order: (1) the driver-side underbody panel; (2) raise the spare tire back into position; (3) reinstall the exhaust isolators.
Safety glasses must be worn at all times during installation. When lowering the exhaust, it must be supported—do not allow it to hang unsupported. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Periodically check that all fasteners are tight and all structural components are sound. The manual does not specify a retorque interval or maintenance schedule beyond these periodic checks.
Professional installation time is approximately 90 minutes. Novice (DIY) installation time is approximately 39–45 minutes, depending on experience level.
CURT Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
The product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 13427 is designed for 2020-present Hyundai Palisade SUVs.
Weight-carrying: 5,000 lbs trailer / 750 lbs tongue. Weight-distribution: 6,000 lbs trailer / 750 lbs tongue. Never exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. The hitch uses existing vehicle weldnuts and frame spacers.
Ratchet, torque wrench, 6-inch socket extension, 11mm/14mm/17mm/19mm sockets, screwdriver, 19mm boxed-end wrench, and safety glasses.
M12 fasteners: 79 lb-ft. M10 fasteners: 48 lb-ft.
Spare tire, driver-side underbody panel, and exhaust isolators must be temporarily removed or lowered. All are reinstalled after hitch installation.
Wear safety glasses at all times. Support the exhaust when lowering it. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and structural components are sound.
