CURT
Verify Fitment
Select your vehicle to confirm this part fits.














Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Installation requires temporary removal of hitch cover panel
Includes installation hardware
Includes installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square

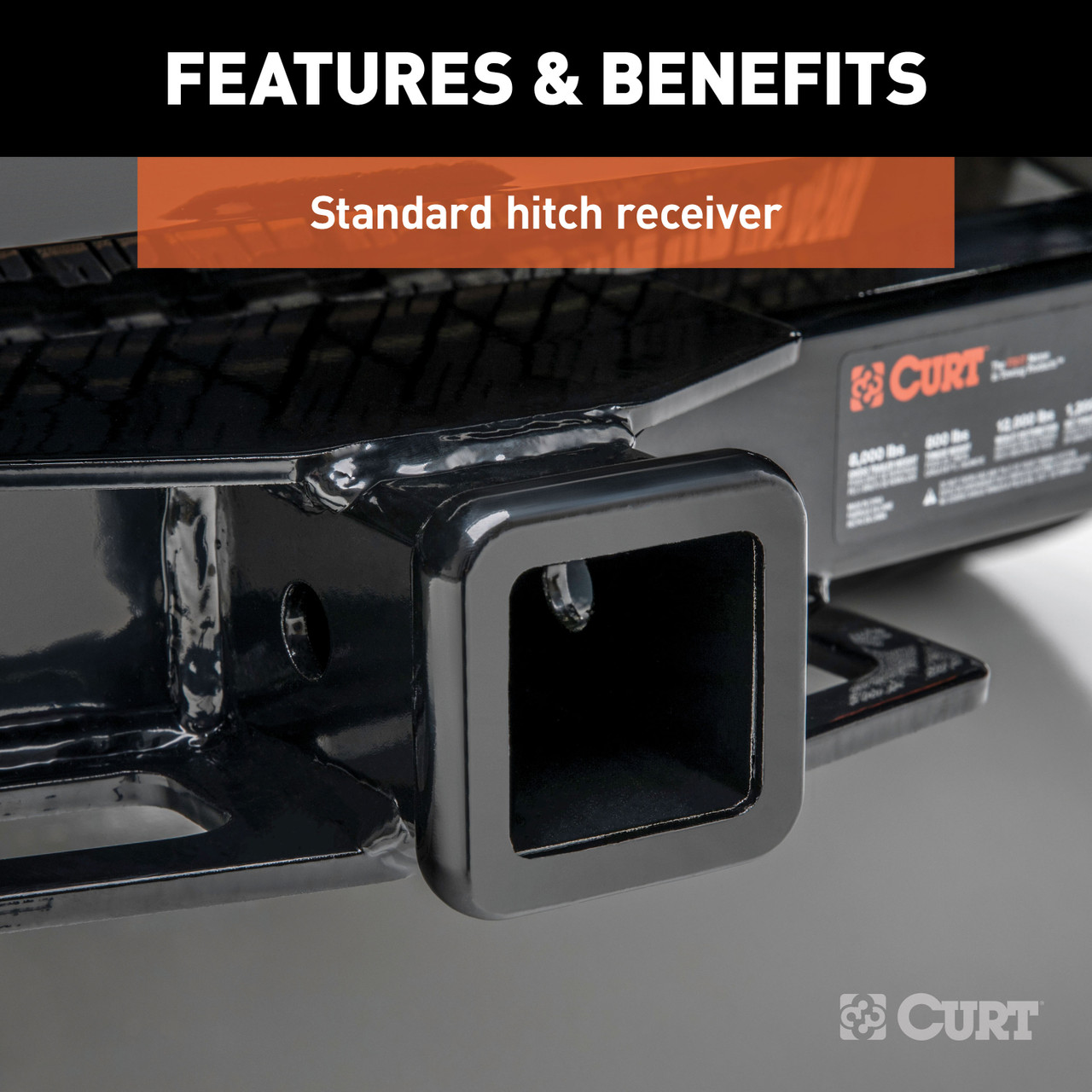

Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 525 LB / 3,500 LB
Weight Carrying Capacity (Pounds): 3,500 LB
WC Tongue Weight (Pounds): 525 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 30

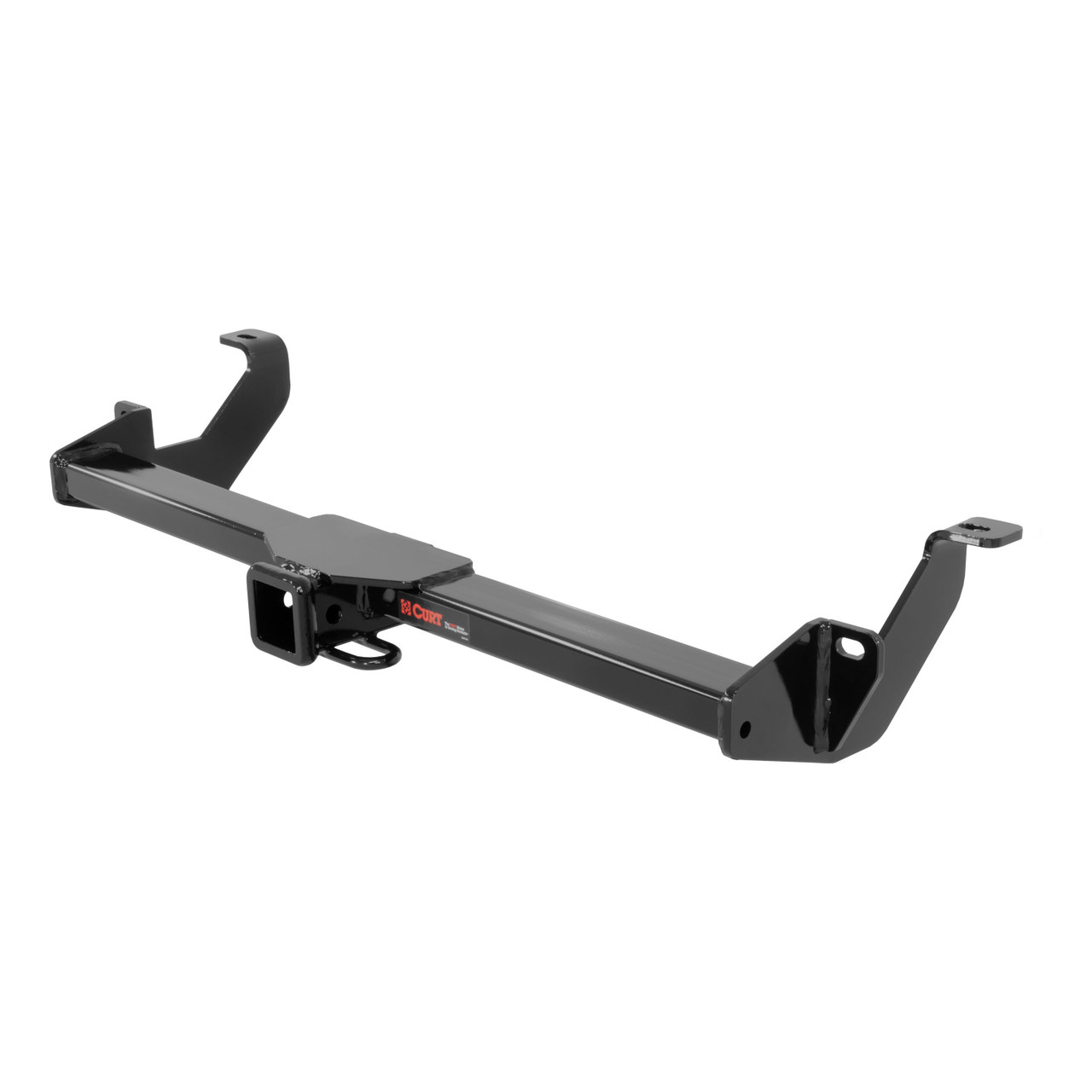

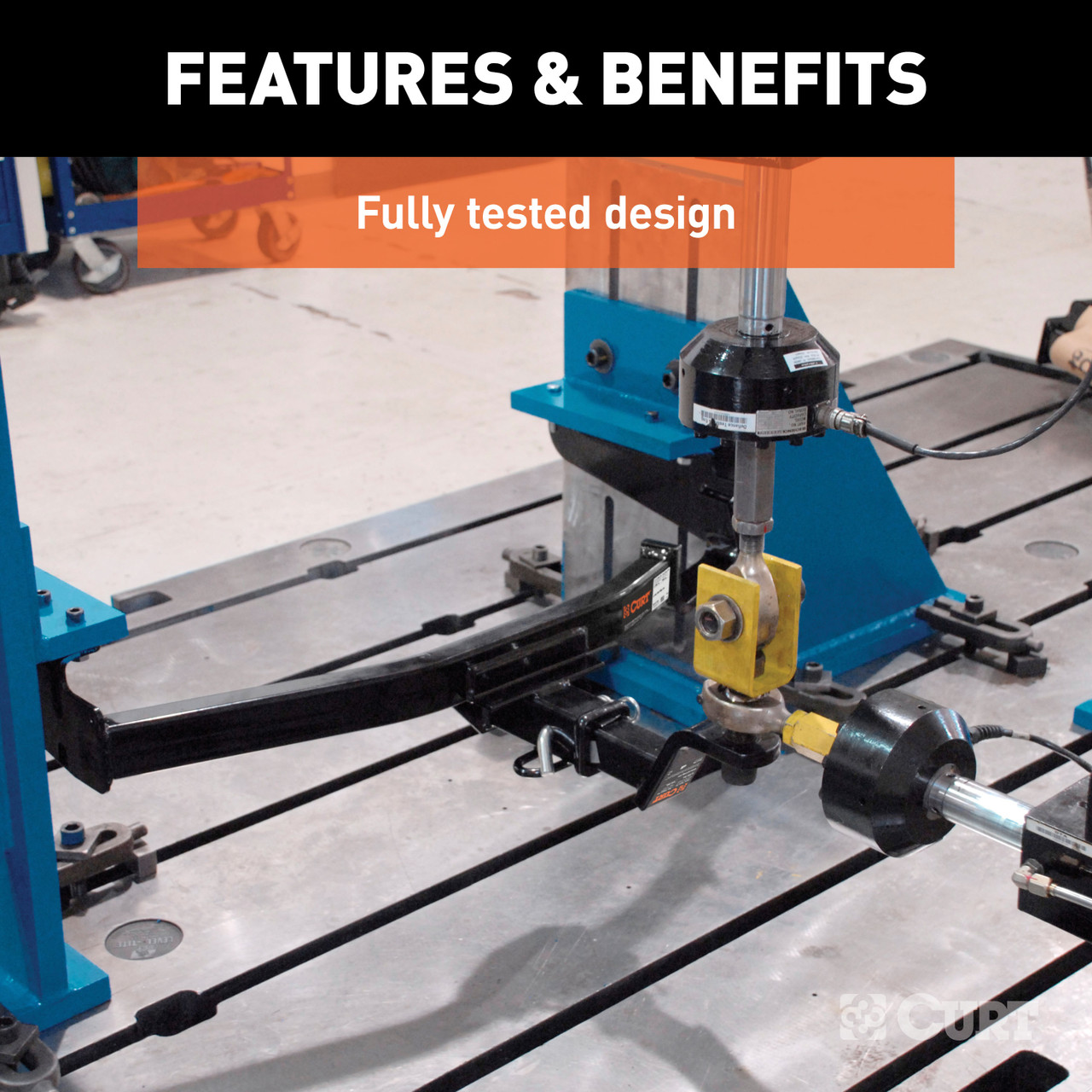

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Buick Envision (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.

CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2018 | Buick Envision | No Drilling Required Installation Time: 30-60 minutes Visibility: Concealed |
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Buick Envision Trailer Hitch (Part #BKDK13292) fits 2016-2018 Buick Envision models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Class 3 Trailer Hitch, 2" Receiver, Select Buick Envision Trailer Hitch (Part #BKDK13292) is designed to fit the 2016-2018 Buick Envision.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Buick Envision Trailer Hitch (Part #BKDK13292) fits the following vehicles: 2016-2018 Buick Envision. Always verify your specific year, make, and model before ordering.
The CURT Class 3 Trailer Hitch, 2" Receiver, Select Buick Envision Trailer Hitch (Part #BKDK13292) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 13292 is designed for 2016 and current model year Buick Envision SUVs. The hitch is a weight-carrying style with a maximum trailer weight capacity of 3,500 lbs and tongue weight capacity of 525 lbs.
Yes. The manual states the hitch fits 2016 and current model year Buick Envision SUVs, which means it is compatible with all model years from 2016 onwards.
The maximum trailer weight capacity is 3,500 lbs and the maximum tongue weight capacity is 525 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these limits.
You will need: a T15 torxbit, flat head screwdriver, 11/16" socket, 15mm deep well socket, ratchet, torque wrench, and safety glasses. A 7/16" fishwire is also required for installation but is included with the hitch.
Two people may be required to ease installation. The manual recommends having a second person available to help, though it does not state that two people are absolutely mandatory.
No. The manual explicitly states "NO DRILLING REQUIRED" for this installation.
The manual does not mention disconnecting the battery. Based on the installation steps provided, battery disconnection does not appear to be required for this hitch installation.
The first step is to remove the two screws holding the hitch cover panel to the bumper using a T15 torxbit. Then remove the five fascia tabs along the hitch cover panel using a flat head screwdriver. Remove the cover and save it for optional re-installation.
Remove two screws holding the bumper fascia using a T15 torxbit and save them for re-installation. Also use a 15mm deep well socket to remove one M10 flange nut from the bottom of the driver side bumper beam attachment location, and repeat on the passenger side. Save these nuts for re-installation.
The 7/16" fishwire is used to guide the carriage bolt and spacer through the access hole and out the rearmost hole in the driver and passenger side frame rails. The fishwire helps position the hitch correctly before final fastening.
Gently pull the fascia down and raise the hitch into position while guiding the fishwires through the mounting holes. The hardware may need to be temporarily pushed into the frame to position the hitch over the bumper beam studs. Leave the fishwires attached during this process.
All 7/16" hardware must be torqued to 59 ft-lbs.
All M10 hardware must be torqued to 40 ft-lbs.
Leave the fasteners loose initially. After removing the fishwires, loosely secure the 7/16" nuts and secure the existing M10 nuts onto the bumper beam studs. Only after the hitch is properly positioned should you torque all 7/16" hardware to 59 ft-lbs and all M10 hardware to 40 ft-lbs.
Yes. Reinstalling the hitch cover panel is optional. If you choose to reinstall it, secure the screws with a T15 torxbit socket.
Safety glasses must be worn at all times while installing this product.
All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
The kit includes: two 7/16-14 UNC carriage bolts (part 10-10282), two 0.250 x 0.88 x 2.25" square hole spacers (CM-SP2), two 7/16-14 UNC serrated flange nuts (part 20-00103), and two 7/16" fishwires.
Yes. The manual explicitly states: "BEFORE YOU BEGIN INSTALLATION, READ ALL INSTRUCTIONS THOROUGHLY." This ensures you understand the complete process and have all necessary tools and information before starting work.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 13292 is designed for 2016 and current model year Buick Envision SUVs with a 3,500 lb trailer weight and 525 lb tongue weight capacity.
No, drilling is not required. The hitch uses existing frame holes and fastener locations.
You need a T15 torxbit, flat head screwdriver, 11/16" and 15mm sockets, ratchet, torque wrench, and safety glasses. The fishwire is included.
Torque all 7/16" hardware to 59 ft-lbs and all M10 hardware to 40 ft-lbs.
Maximum trailer weight is 3,500 lbs and tongue weight is 525 lbs, but never exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty.
Two people may be required to ease installation, though the manual does not state this is mandatory.
