Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
Includes strong, grade-8 installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square
Receiver Tube Size (Inches): 2-1/2 IN
WC / TW (Pounds): 2,700 LB / 20,000 LB
WD / WDTW (Pounds): 20,000 LB / 2,700 LB
Weight Carrying Capacity (Pounds): 20,000 LB
WC Tongue Weight (Pounds): 2,700 LB
Weight Distribution (Pounds): 20,000 LB
WD Tongue Weight (Pounds): 2,700 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

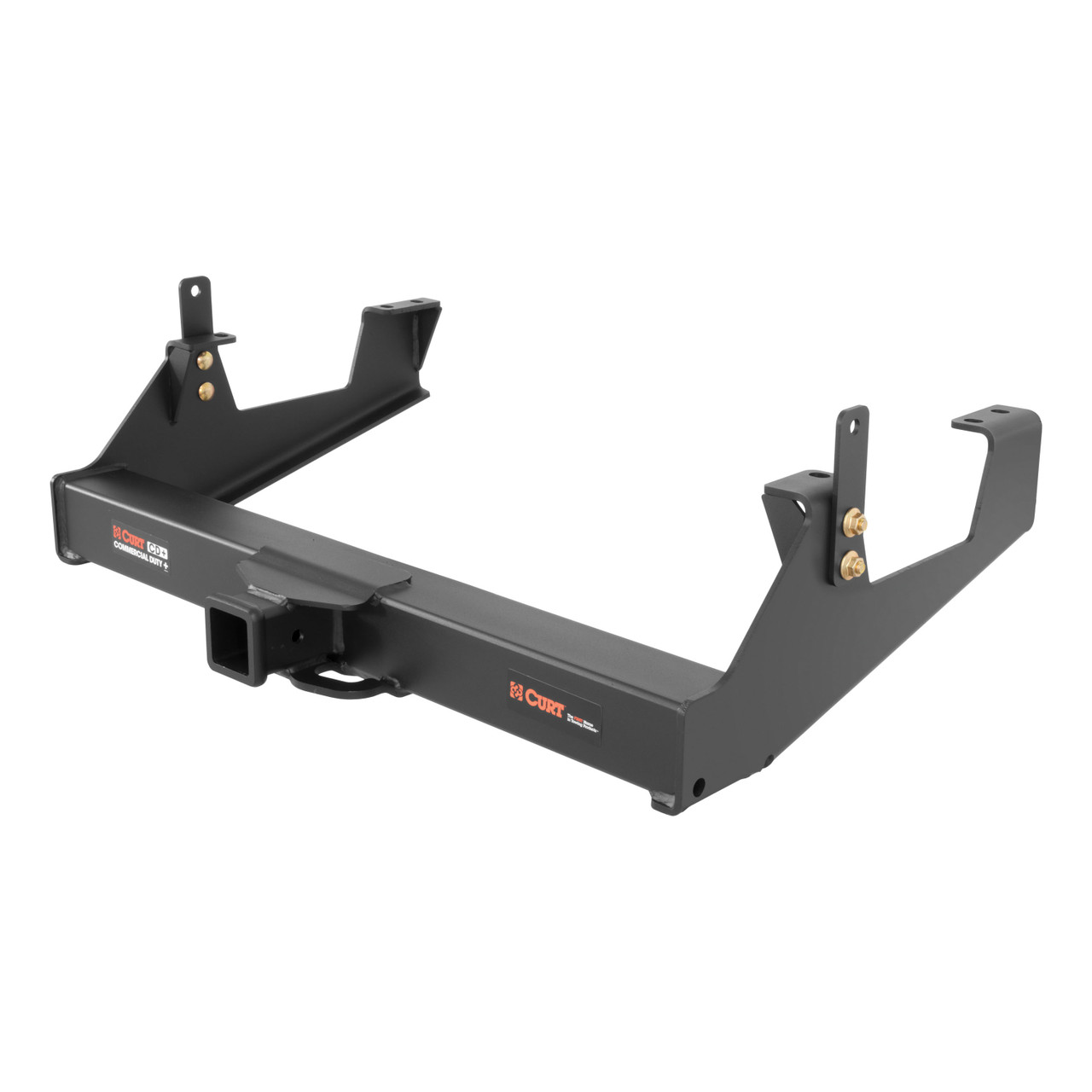

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
12 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2011 - 2019 | Chevrolet Silverado 2500 HD | Crew Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2013, 2015 - 2019 | Chevrolet Silverado 2500 HD | Extended Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2019 | Chevrolet Silverado 2500 HD | Standard Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2019 | Chevrolet Silverado 3500 HD | Crew Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2013, 2015 - 2018 | Chevrolet Silverado 3500 HD | Extended Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2018 | Chevrolet Silverado 3500 HD | Standard Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2019 | GMC Sierra 2500 HD | Crew Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2013, 2015 - 2019 | GMC Sierra 2500 HD | Extended Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2019 | GMC Sierra 2500 HD | Standard Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2019 | GMC Sierra 3500 HD | Crew Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2013, 2015 - 2018 | GMC Sierra 3500 HD | Extended Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
| 2011 - 2018 | GMC Sierra 3500 HD | Standard Cab Pickup | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
Yes, the CURT 15860 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver, Compatible with Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD (Part #BKDK15860) is designed to fit the 2011-2019 Chevrolet Silverado 2500 HD.
The CURT 15860 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver, Compatible with Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD (Part #BKDK15860) fits the following vehicles: 2011-2019 Chevrolet Silverado 2500 HD; 2011-2019 Chevrolet Silverado 3500 HD; 2011-2019 GMC Sierra 2500 HD; 2011-2019 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
The CURT 15860 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver, Compatible with Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD (Part #BKDK15860) fits 2011-2019 Chevrolet Silverado 2500 HD models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 15860 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver, Compatible with Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD (Part #BKDK15860) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, Curt part number 15860 is designed for Chevrolet and GMC 2500/3500 trucks. The installation procedure differs between long bed and short bed models. Long bed installation uses existing holes; short bed installation requires drilling one additional hole on each frame rail.
The hitch itself is the same part, but installation differs. Long bed trucks use existing holes in the frame rails. Short bed trucks require drilling one forward-most hole on each frame rail for the 1/2" fasteners. Short bed installation also requires temporary removal of the passenger side spare tire heat shield.
Required tools are: ratchet, torque wrench, 10" extension, 21mm socket, 3/4" socket, 13mm socket, 17/32" drill bit, and drill. The drill is only needed for short bed installations.
The kit includes: 4× 1/2"-13 UNC 1-1/4" carriage bolts (10-10278), 2× 9/16"-12 UNC 1-3/4" carriage bolts (10-10328), 2× M14×2 45mm hex bolts (10-10449), 4× 1/2"-13 serrated flange nuts (20-00062), 2× 9/16"-12 serrated flange nuts (20-00104), 2× 9/16" washers (30-00164), 2× spacers (CM-SP71), and 2× strap plates (15860-ST).
Yes. The first step for both long bed and short bed installation is to lower the spare tire for ease of installation.
Remove any existing 14mm fasteners from the end of each frame rail (if present) and return them to the vehicle owner. Also remove the lower 14mm bumper bracket bolt from the side of each frame rail and retain it for reinstallation—this bolt is reused to secure the strap plates.
Yes, for short bed installation only. Remove the passenger side spare tire heat shield by removing 2× 7mm fasteners. Retain both the heat shield and fasteners for reinstallation. The hitch side plate will be sandwiched between the heat shield and frame rail after installation.
Drilling is required only for short bed installations. You must drill one forward-most hole on each frame rail (driver and passenger side) for the 1/2" fasteners. Use a 17/32" drill bit. You may mark the holes and remove the hitch before drilling if needed.
Use a 17/32" drill bit to drill the forward-most holes on the driver and passenger side frame rails.
Raise the hitch into position and secure it to the rear-most weldnut in each frame rail using M14-2 × 45 hex bolts and 9/16" conical toothed washers. Then install 1/2"-13 × 1-3/4" carriage bolts with CM-SP71 spacers through the existing holes (long bed) or drilled holes (short bed), and secure with 1/2" flange nuts.
Attach the 15860-ST strap plates to the side plates using 1/2"-13 × 1-1/4" carriage bolts and 1/2"-13 flange nuts. Secure the straps to the outside of the frame rails using the 14mm bolt removed earlier from the bumper bracket.
For long bed installation: torque all 14mm fasteners to 126 ft-lbs, all 9/16" fasteners to 150 ft-lbs, and all 1/2" fasteners to 110 ft-lbs. For short bed installation: torque all 14mm fasteners to 126 ft-lbs, 9/16" fasteners to 130 ft-lbs, all 1/2" fasteners to 110 ft-lbs, and all 7mm fasteners to 16 ft-lbs.
Torque all 14mm fasteners to 126 ft-lbs. This applies to both long bed and short bed installations.
Torque all 1/2" fasteners to 110 ft-lbs. This applies to both long bed and short bed installations.
For long bed installation, torque 9/16" fasteners to 150 ft-lbs. For short bed installation, torque 9/16" fasteners to 130 ft-lbs.
Torque all 7mm fasteners to 16 ft-lbs. These fasteners secure the spare tire heat shield on short bed installations.
After installation, reinstall the spare tire. Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
The manual specifies that you must not exceed the vehicle manufacturer's recommended towing capacity. The parts list indicates gross load capacity values, but these are not filled in the provided manual. Contact Curt Technical Support at 1-877-287-8634 for the specific capacity ratings.
The hitch weight is 45 lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; regular inspection before towing is recommended.
Yes, the Curt 15860 is designed for Chevrolet and GMC 2500/3500 trucks. Installation differs between long bed and short bed models.
Drilling is required only for short bed trucks. You must drill one hole on each frame rail using a 17/32" drill bit.
You need a ratchet, torque wrench, 10" extension, 21mm socket, 3/4" socket, 13mm socket, 17/32" drill bit, and drill (drill only needed for short bed).
Yes. Lower the spare tire, remove any existing 14mm fasteners from the frame rail ends, and remove the lower 14mm bumper bracket bolts (retain for reuse). On short bed trucks, also remove the passenger side spare tire heat shield.
Long bed: 14mm fasteners 126 ft-lbs, 9/16" fasteners 150 ft-lbs, 1/2" fasteners 110 ft-lbs. Short bed: 14mm fasteners 126 ft-lbs, 9/16" fasteners 130 ft-lbs, 1/2" fasteners 110 ft-lbs, 7mm fasteners 16 ft-lbs.
Do not exceed the vehicle manufacturer's recommended towing capacity. The hitch specifications are available from Curt Technical Support at 1-877-287-8634.
Periodically check that all fasteners are tight and all structural components are sound.
