Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.

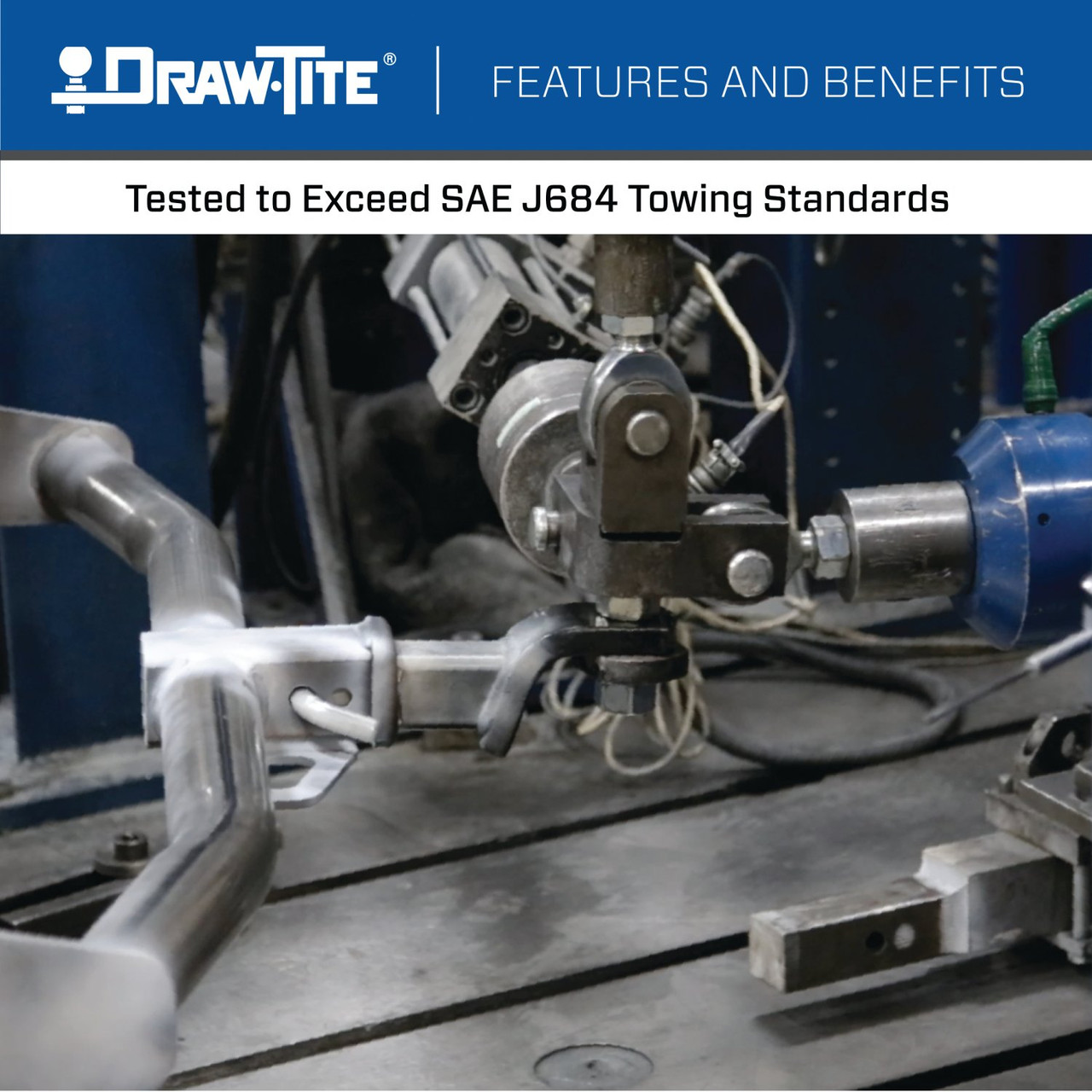

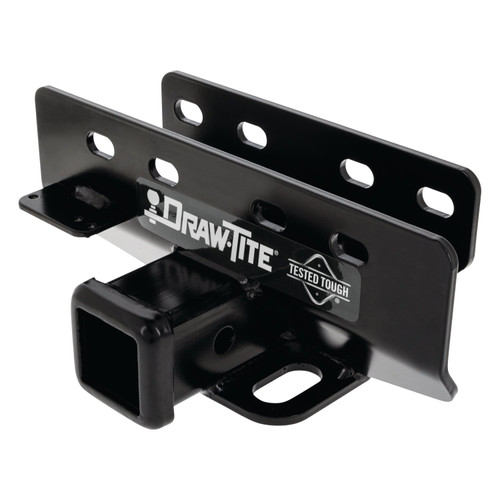

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,500 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76605 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33.8 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2024 | Ford Bronco | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes Except models with OEM Hitch |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76605 (Part #DT76605) is designed to fit the 2021-2024 Ford Bronco.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76605 (Part #DT76605) fits the following vehicles: 2021-2024 Ford Bronco. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76605 (Part #DT76605) fits 2021-2024 Ford Bronco models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76605 (Part #DT76605) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76605, 84605, and CQT76605 are designed for 2021-Current Ford Bronco models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 4500 lb (2041 kg) and maximum tongue weight is 675 lb (306 kg) for both weight-carrying and weight-distributing configurations. Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.

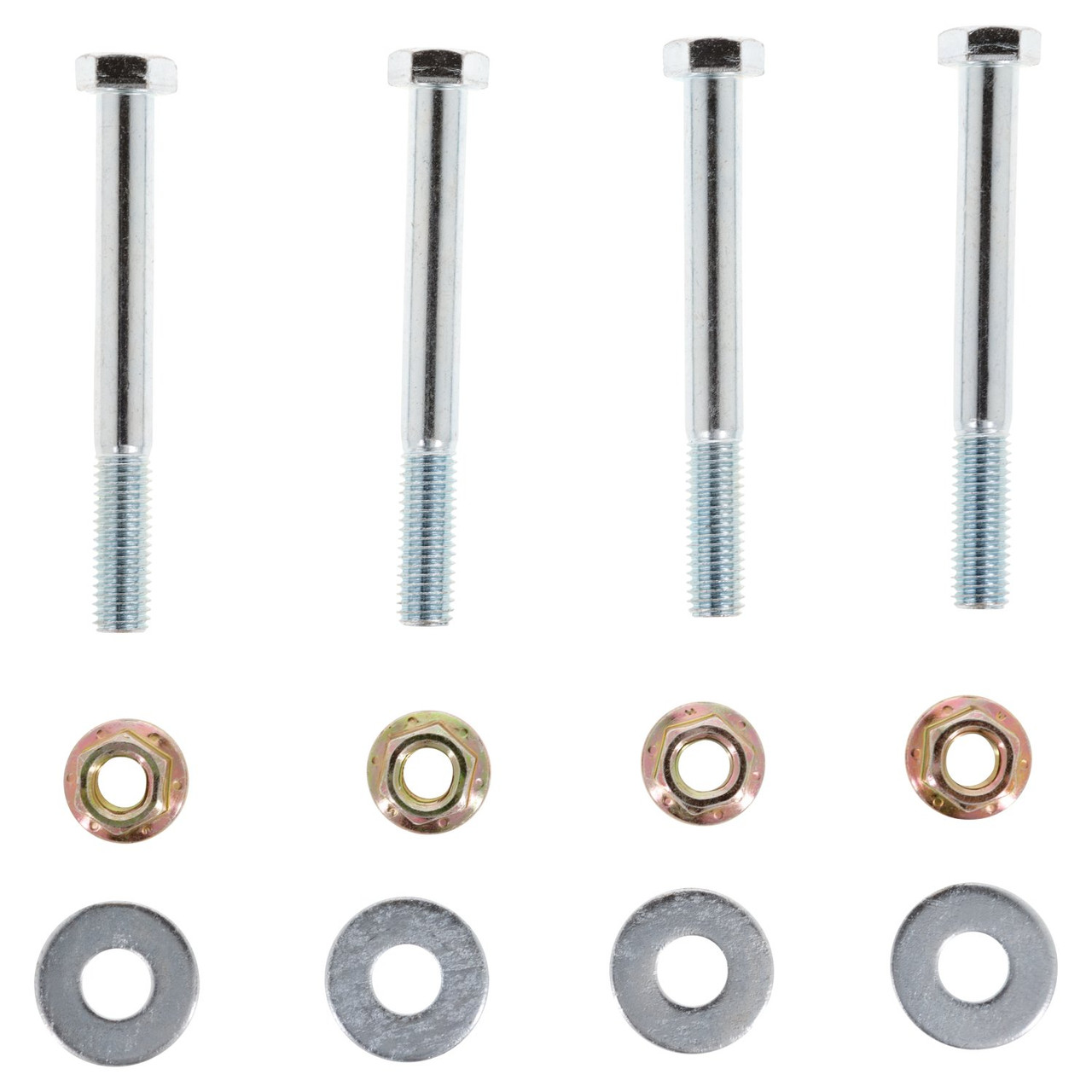

Fastener kit 76605F includes four ½-13 x 4½" GR5 hex bolts, four ½" flat washers, and four ½-13 flange locknuts. These are the only fasteners required for installation.
You will need a ratchet, torque wrench, safety glasses, sockets, and a 3/4" wrench. A torque wrench is essential to properly tighten fasteners to the specified torque value.
The average installation time for professional installers is 25 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
1. Raise the hitch into position, aligning the slots in the hitch with the attachment holes in the bumper beam. 2. Insert four ½" hex bolts with washers through the hitch and the holes in the bumper beam from the vehicle forward side of the hitch to the rear. 3. Secure with the ½" flange locknuts supplied with the hitch. 4. Tighten all ½" GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).
All ½" GR5 fasteners must be tightened to 75 lb-ft (102 N·m) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not use a torch to cut access or attachment holes. Do not cut, weld, or modify the receiver.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Load the trailer heavier in front. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, part numbers 76605, 84605, and CQT76605 fit 2021-Current Ford Bronco models. Check the manufacturer's website for the most current trim level compatibility.
Maximum gross trailer weight is 4500 lb (2041 kg) and maximum tongue weight is 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, sockets, and 3/4" wrench. Fasteners included: four ½-13 x 4½" GR5 hex bolts, four ½" flat washers, and four ½-13 flange locknuts.
Tighten all ½" GR5 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
No drilling is required. The hitch aligns with existing attachment holes in the bumper beam. Do not use a torch to cut holes.
Average installation time for professional installers is 25 minutes. If you are not comfortable installing it yourself, contact a professional installer.
